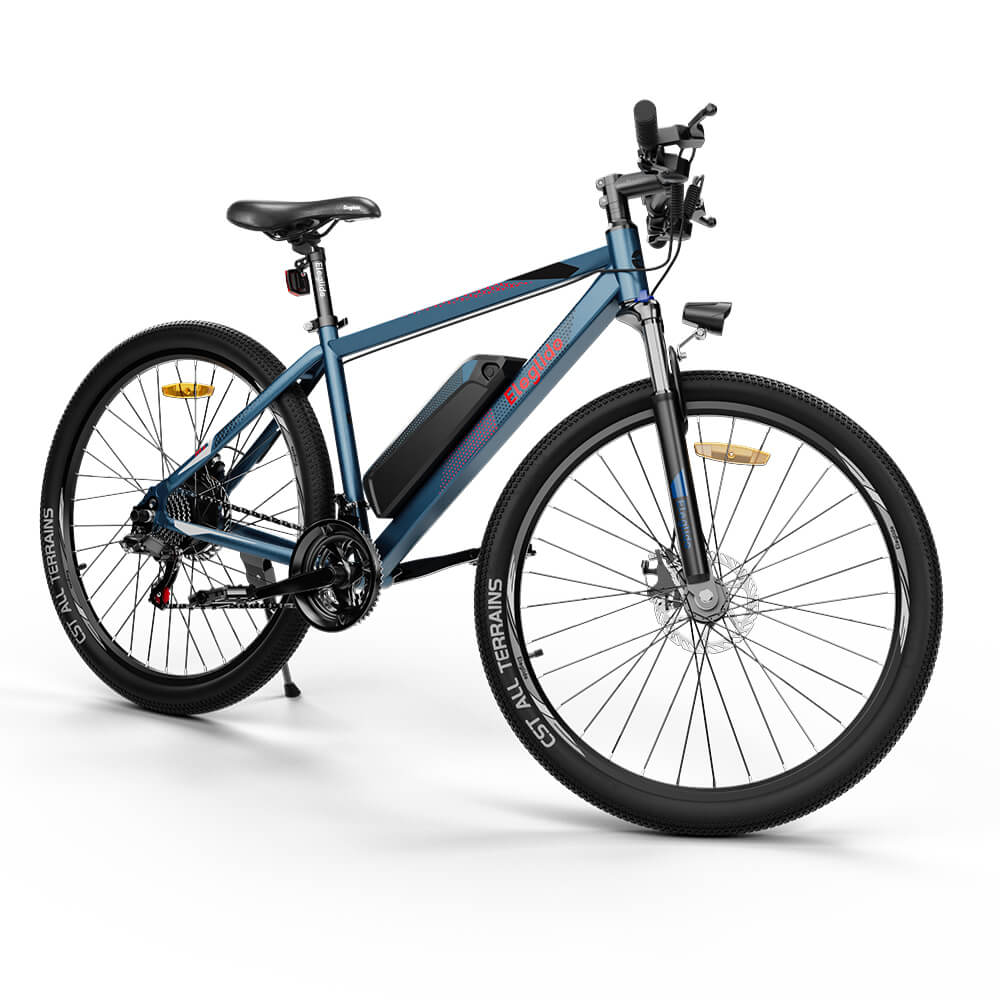

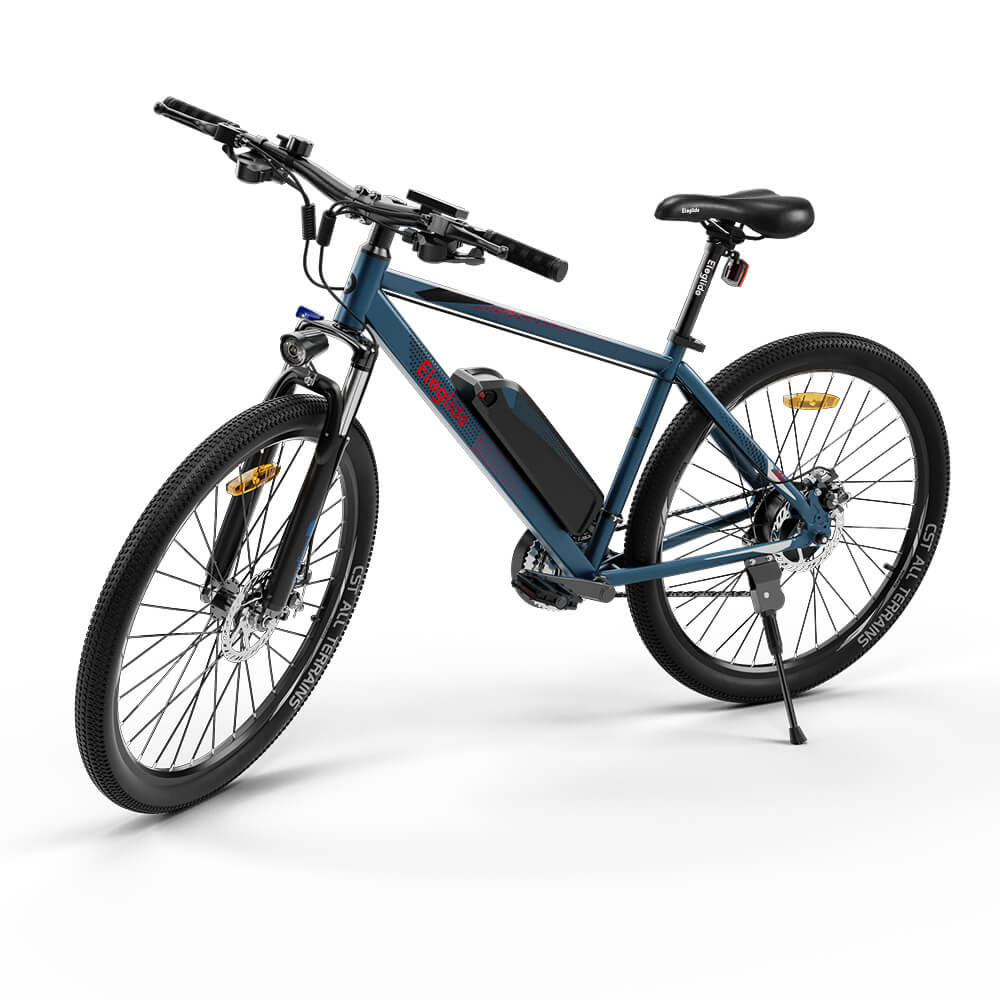

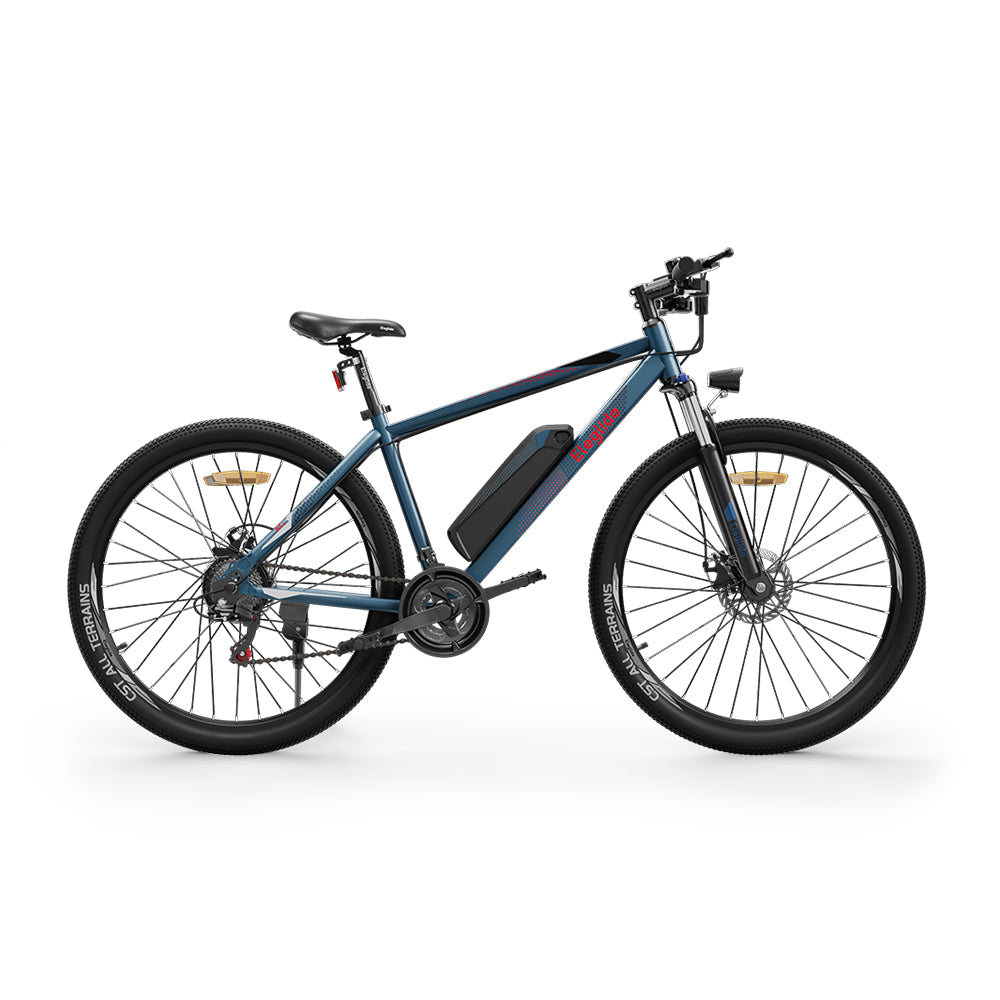

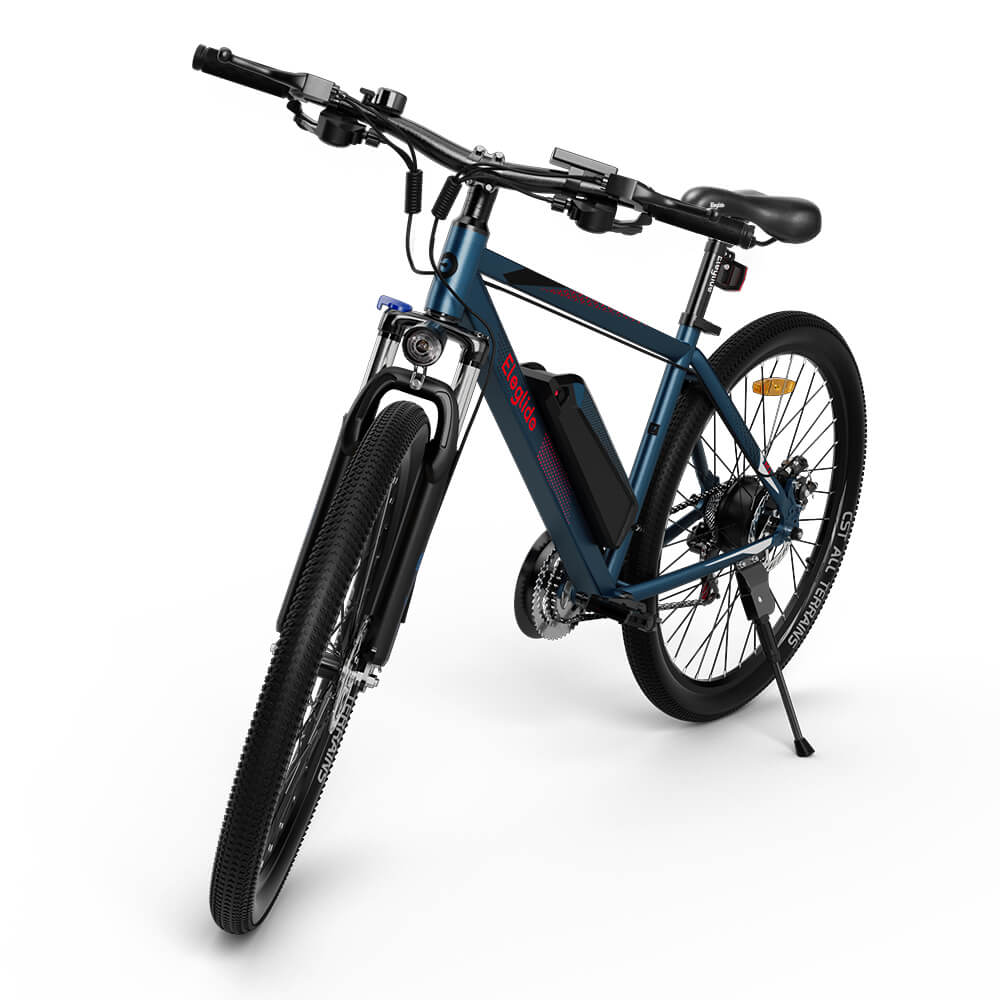

ELEGLIDE Electric Mountain Bike M1

Eleglide M1 – Conquer Trails with Power & Precision

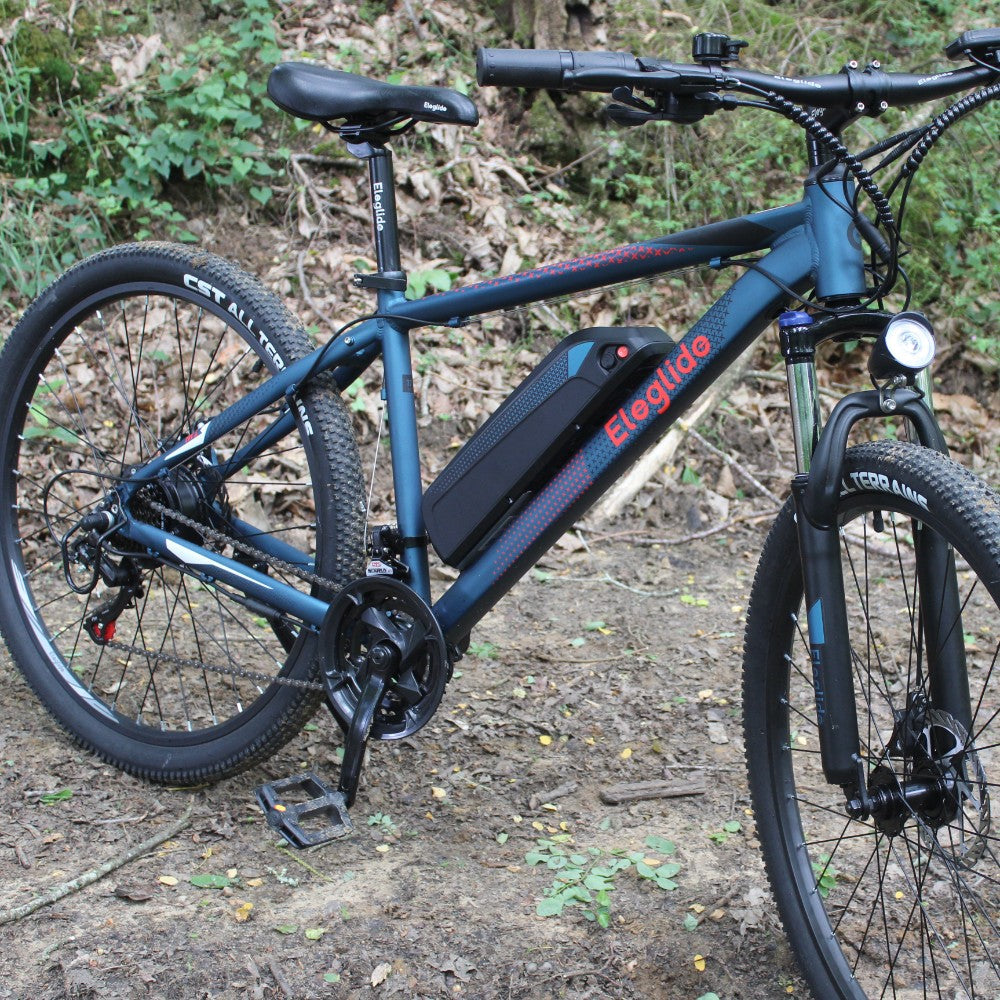

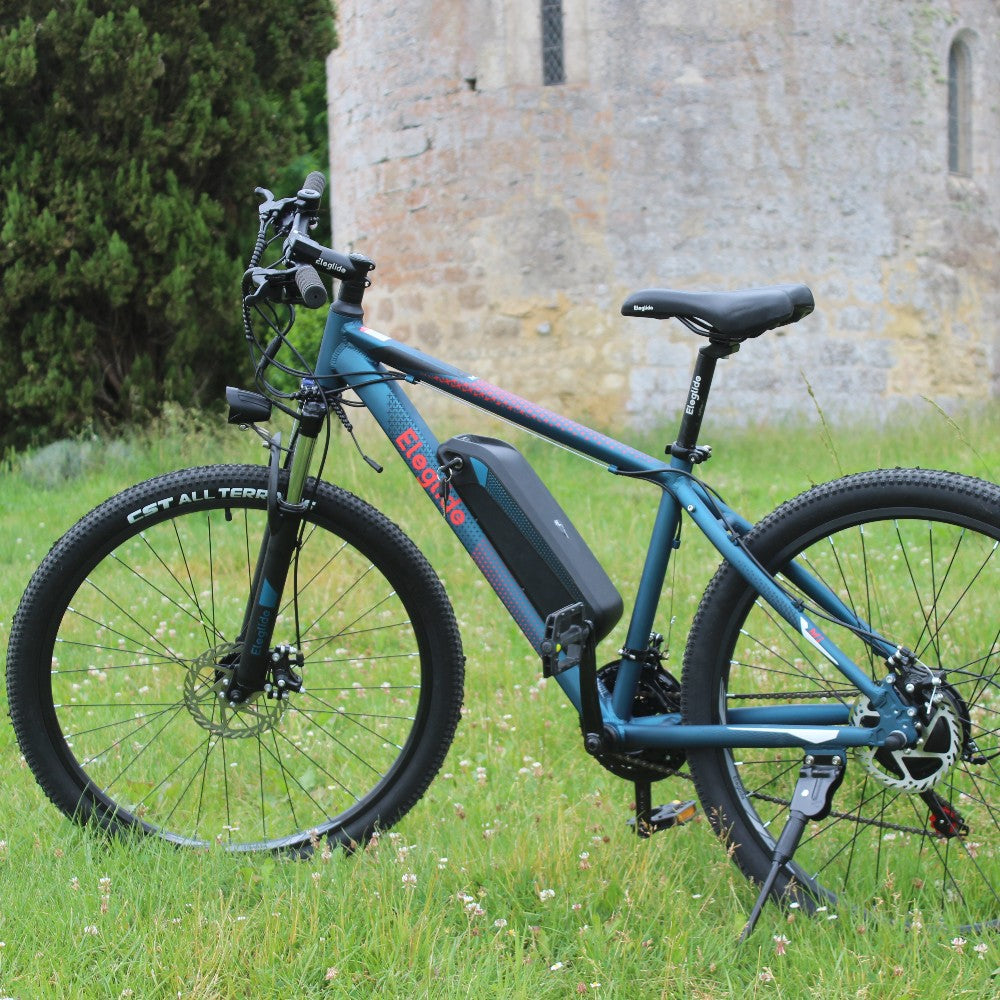

Unlock new adventures with the Eleglide M1, an electric mountain bike engineered for effortless performance and rugged terrain. Its super-light aluminum alloy frame offers the agility of a traditional mountain bike, while the integrated 250W brushless motor provides the extra boost needed to tackle steep climbs with ease. Whether you're exploring trails or cruising through the city, the M1 delivers power, precision, and a ride that feels natural—every time!

Features

• Bigger Roller, Smoother Runner: 27.5" CST pneumatic tires for a smooth ride across various terrains.
• Front Suspension with Lockout: Hydraulic shock absorber with lockout for enhanced comfort.
• Perfect for Long Rides: 7.8Ah removable battery supports up to 65km on assist mode.
• More Power, More Excitement: 250W brushless motor enabling speeds up to 25km/h for an exhilarating ride.
• Multiple Speeds, Multiple Fun: 21-speed Shimano gear for varied and enjoyable cycling experiences.


Specifications

• Max. Range: 65 km (Assist Mode), No Limit (Manual Mode)
• Test Condition: Achieved with a 75kg load, constant speed of 15 km/h on flat roads without strong winds at 26°C
• Max. Speed: 25 km/h
• Max. Load: 100 kg
• Slope: 15°

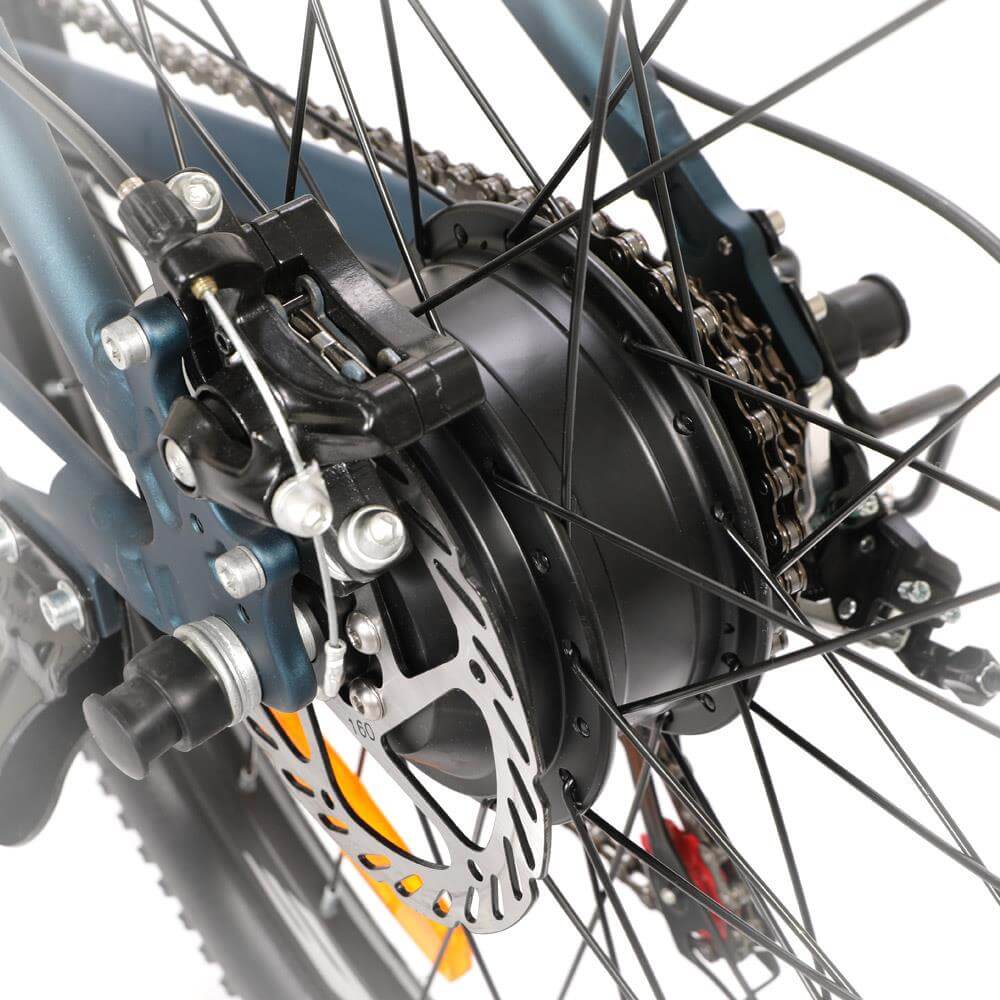

• Motor: 250W 36V, Max RPM 210, Max Output Torque 45N.m, Max Instantaneous Power 500W
• Motor Brand: XOFO Motor
• Battery: 7.8Ah, 36V, 270Wh with Battery Protection System
• Charger: 100-240V 2A (Input), 42V 2A (Output)
• Charging Time: About 4.5 hours

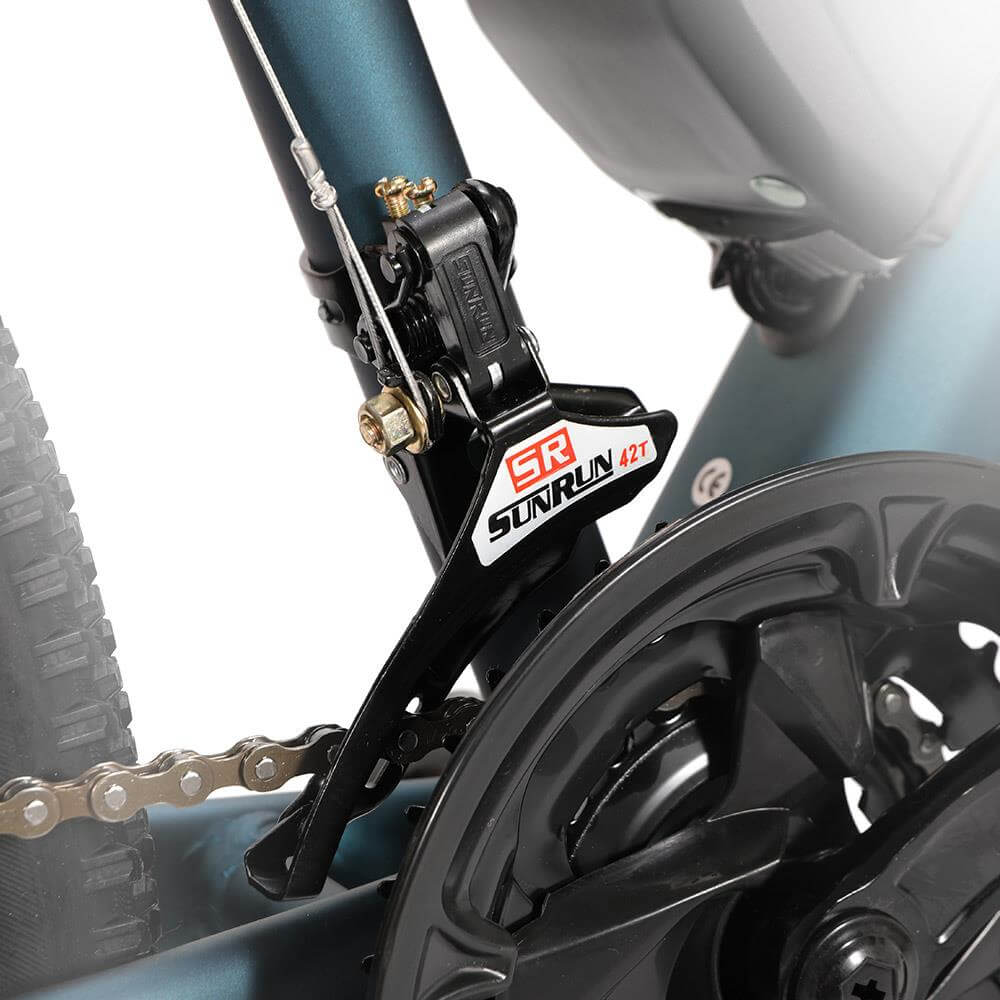

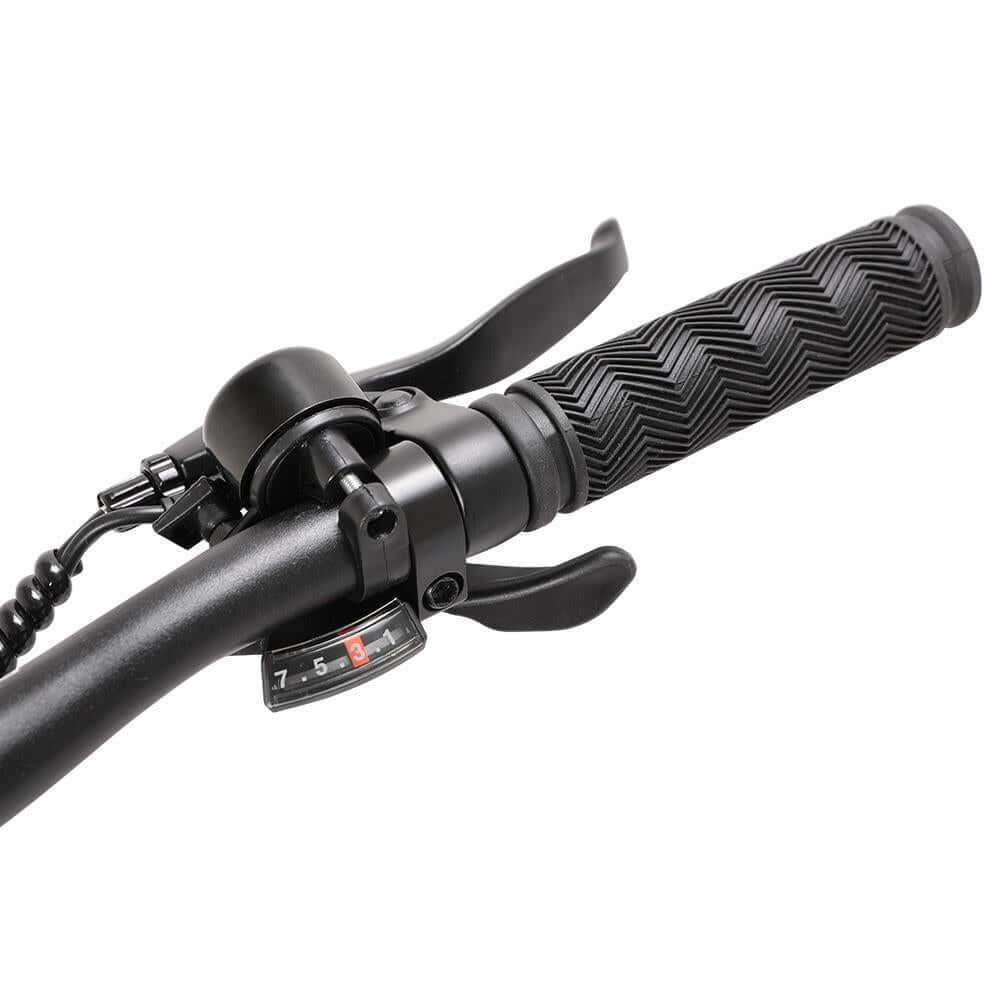

• Derailleur: 21-speed Shimano Gear (Front 3, Rear 7)
• Braking System: Dual Disc Brakes & Auto Power-off Design
• Front & Rear Brake: Mechanical Disc-160mm Rotor
• Suspension: Hydraulic Damping with Lockout

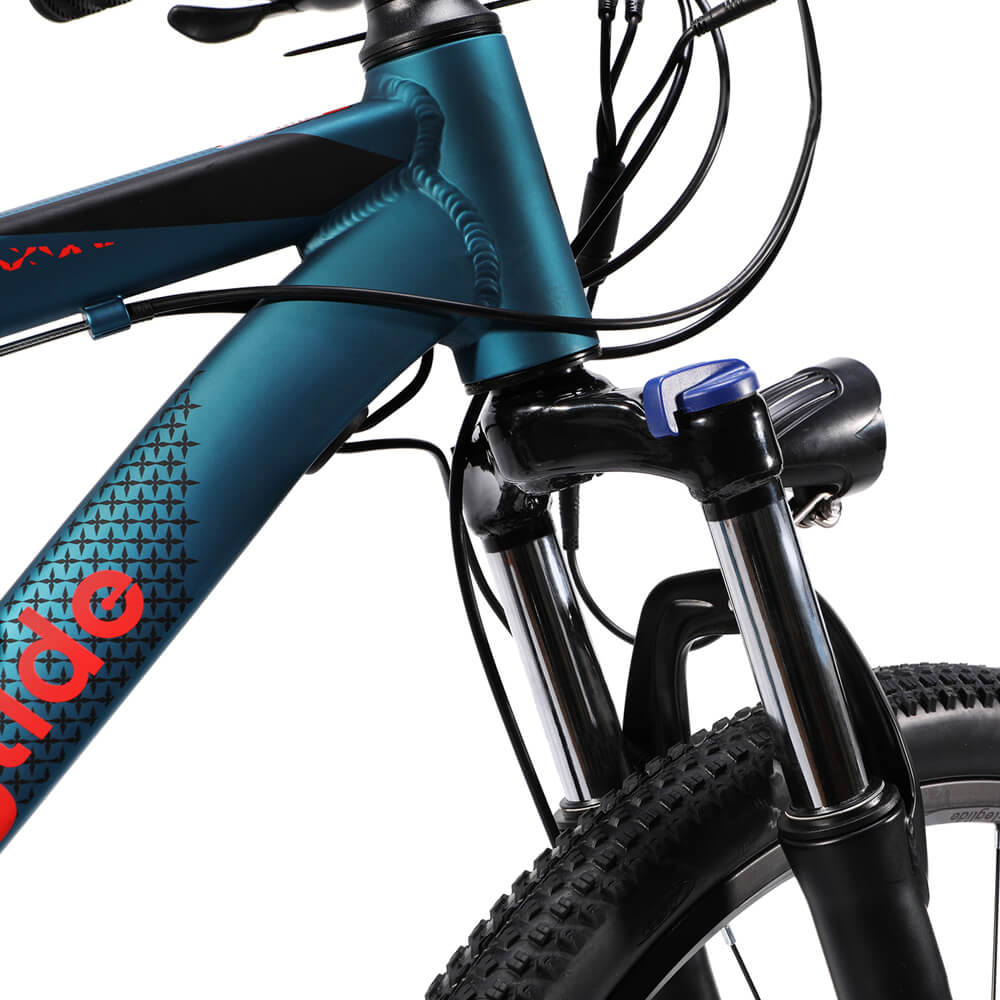

• Fork: Hydraulic with Lockout-100mm travel
• Tires: 27.5"x2.1" CST Pneumatic Rubber Tires, 45-65PSI (Tire Pressure)
• Chain Plate: 42T 34T 24T
• Light: LED, 1.65W, 20° (Beam Angle), 0.5㎡ (Irradiated Area)

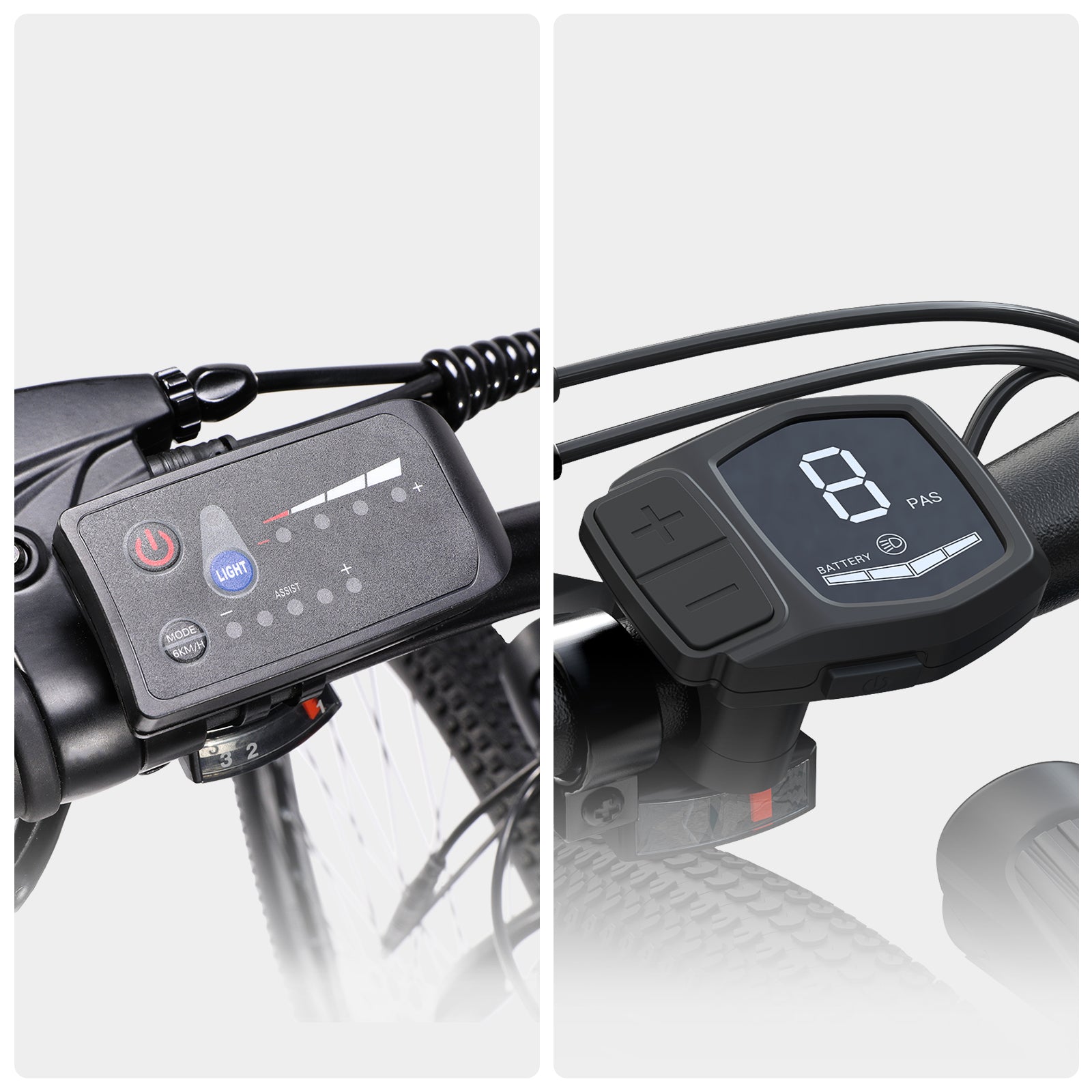

• Display: Intelligent LED Display
• Waterproof Rate: IPX4
• Recommended Rider Heights: 160-185 cm (5.25ft-6.07ft)

Speed Modes:

• Speed 1: 12 km/h
• Speed 2: 16 km/h
• Speed 3: 20 km/h
• Speed 4: 23 km/h
• Speed 5: 25 km/h

Weight & Size:

• Weight: 21.3 kg (Net Weight), 26 kg (Gross Weight)
• Package Size: 1480 x 240 x 770 mm
• Unfolded Size: 1790 x 680 x 1041 mm
• Handlebar Length: 680 mm (26.8")
• Saddle Height (from the ground): 830-1030 mm (33" - 40.5")

Dimension

• A. Total Length: 70.5 inches
• B. Handlebar Height: 41 inches
• C. Wheelbase: 43 inches
• D. Min Seat Height: 33 inches
• E. Max Seat Height: 40.5 inches
• F. Standover Height: 30 inches
• G. Effective Top Tube: 23 inches
• H. Wheel Size: 27.5 inches
• I. Down Tube: 27.1 inches
• J. Seat Tube: 17 inches
• K. Angle: 52.9°

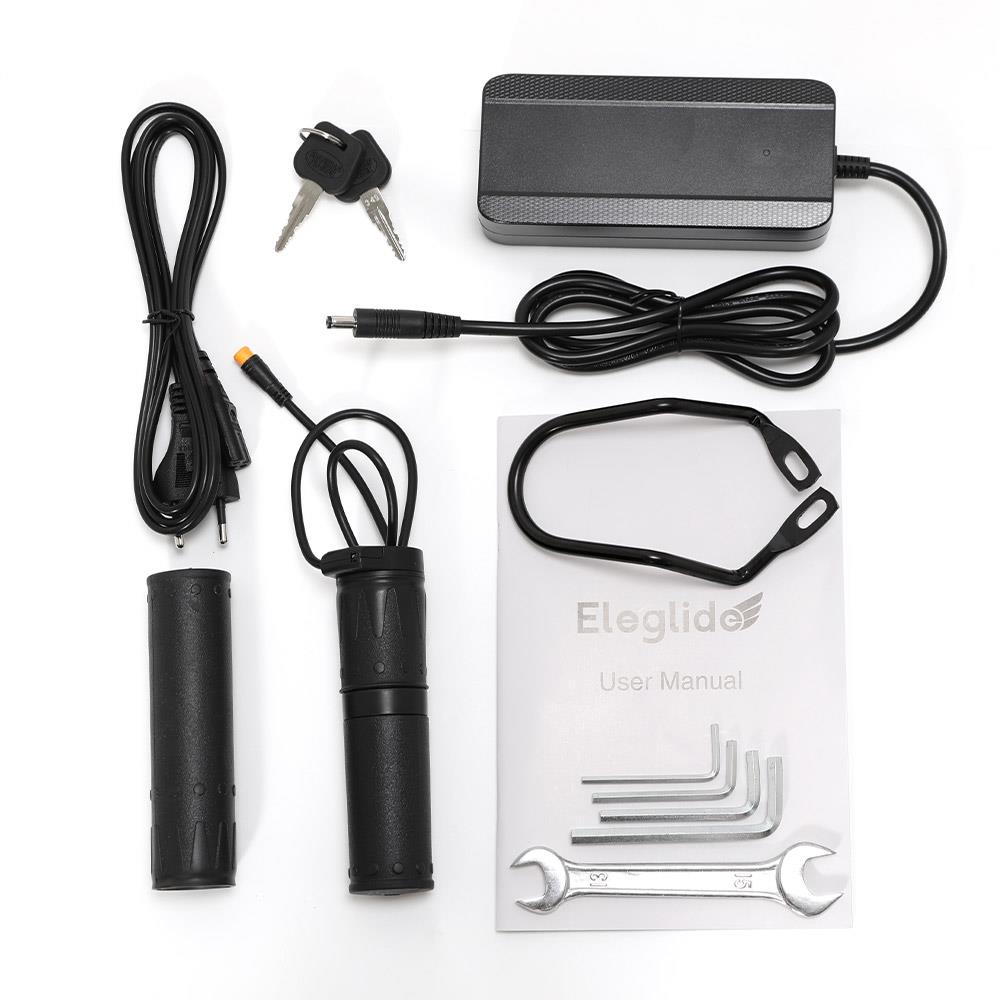

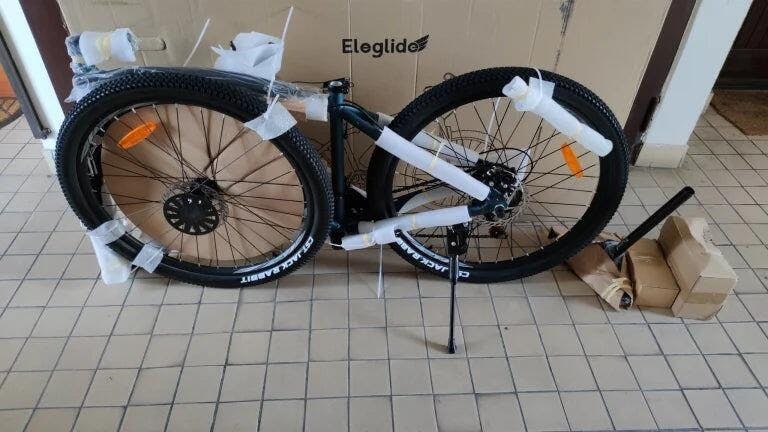

What's in the package?

• 1 x M1 Bike
• 2 x Pedals
• 1 x Charger
• 1 x Tool Kit
• 2 x Keys
• 1 x User Manual
• 2 x Spoke Reflectors

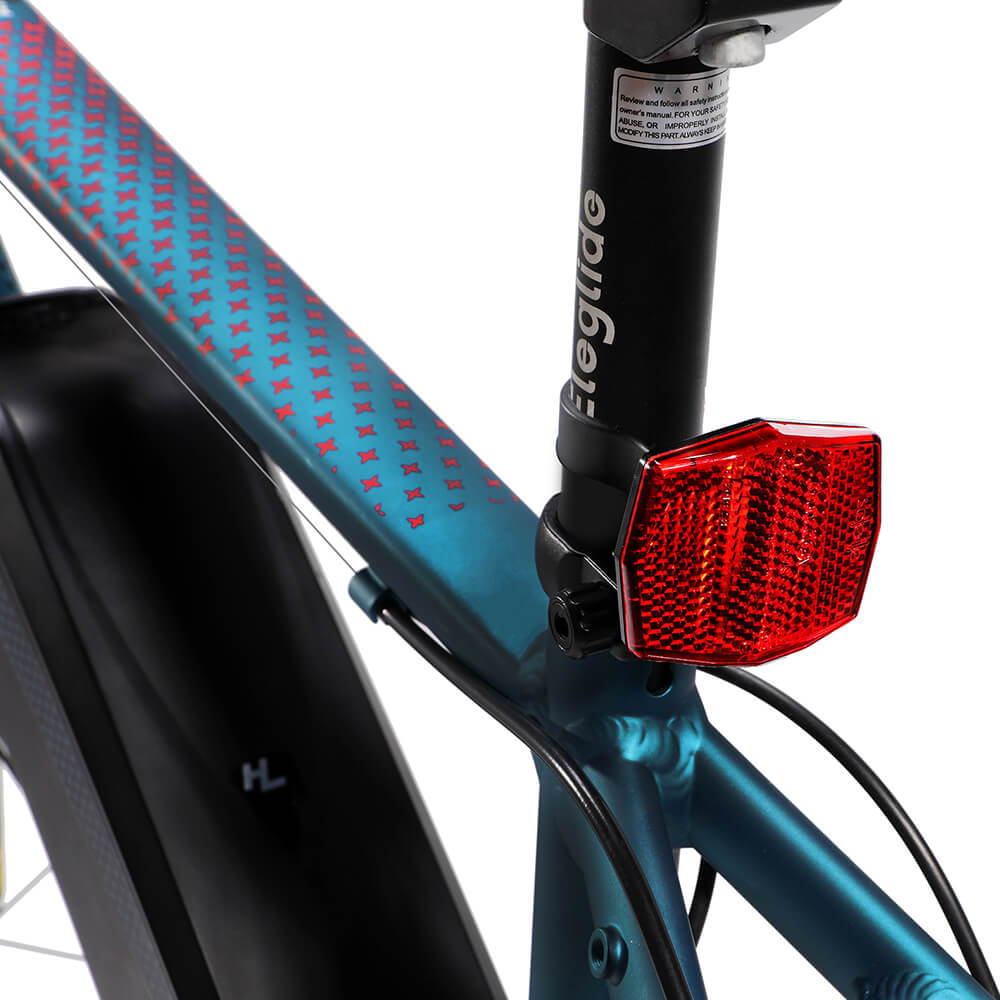

• 1 x Rear Reflector


User Manual

E-bike User Manual of M1/M1 PlUS
