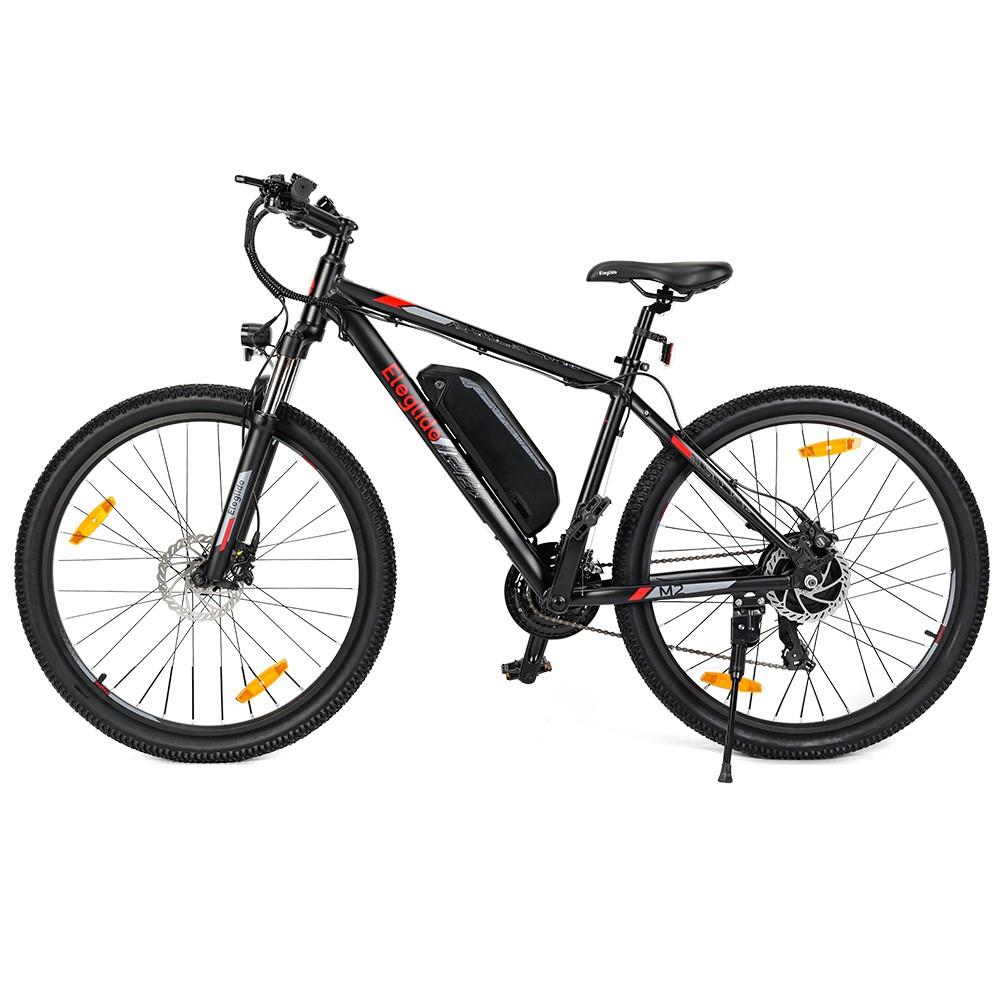

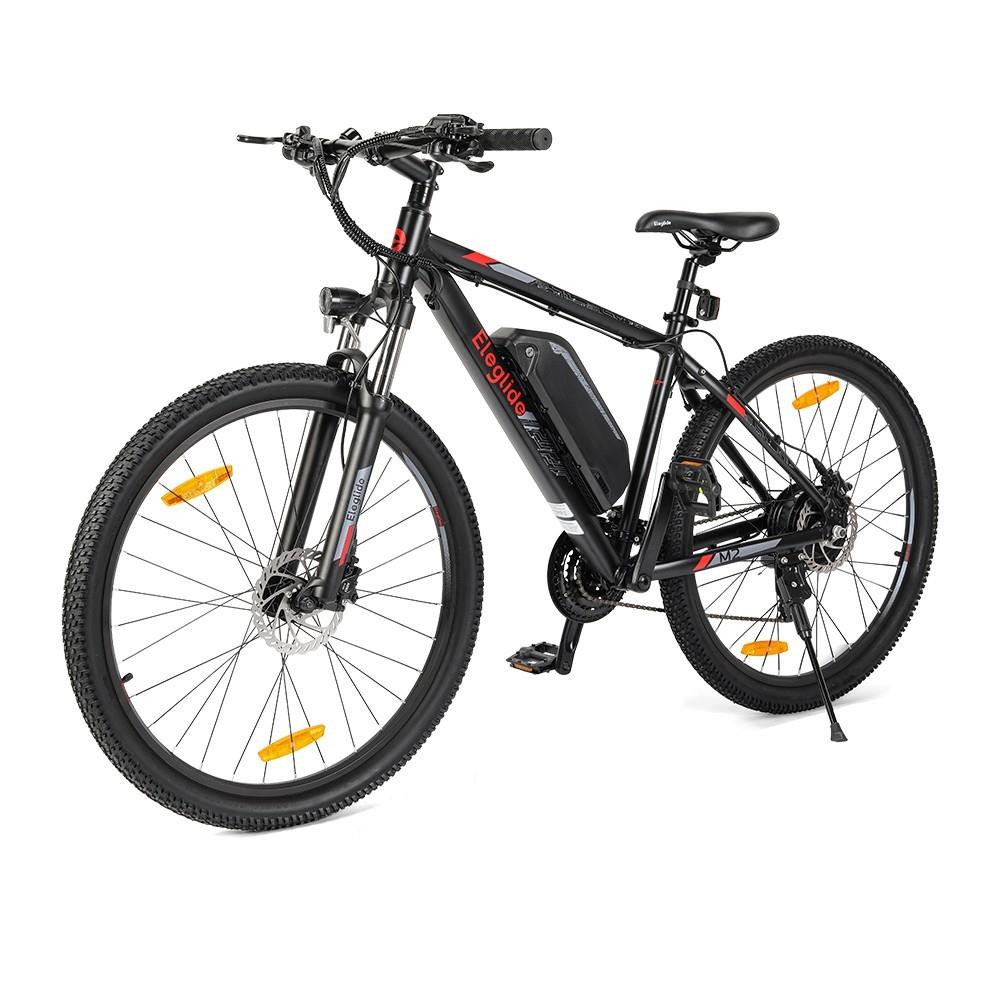

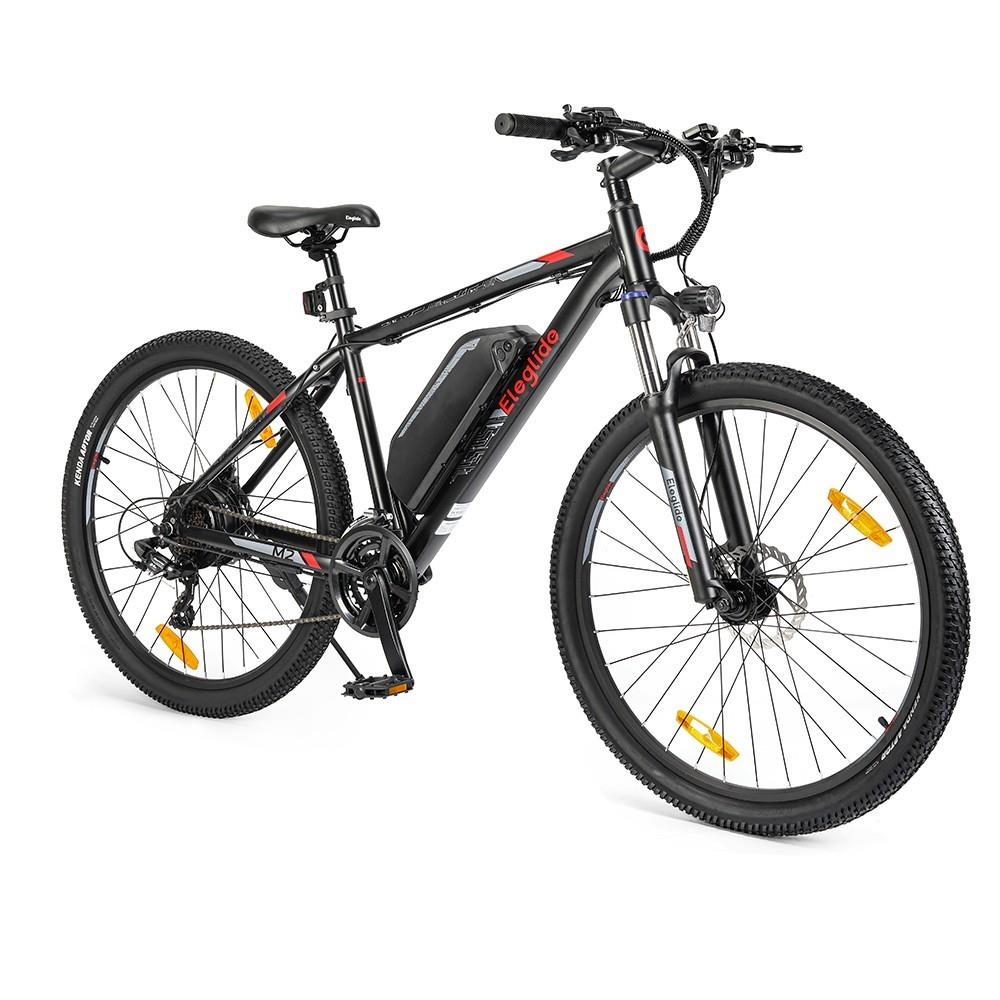

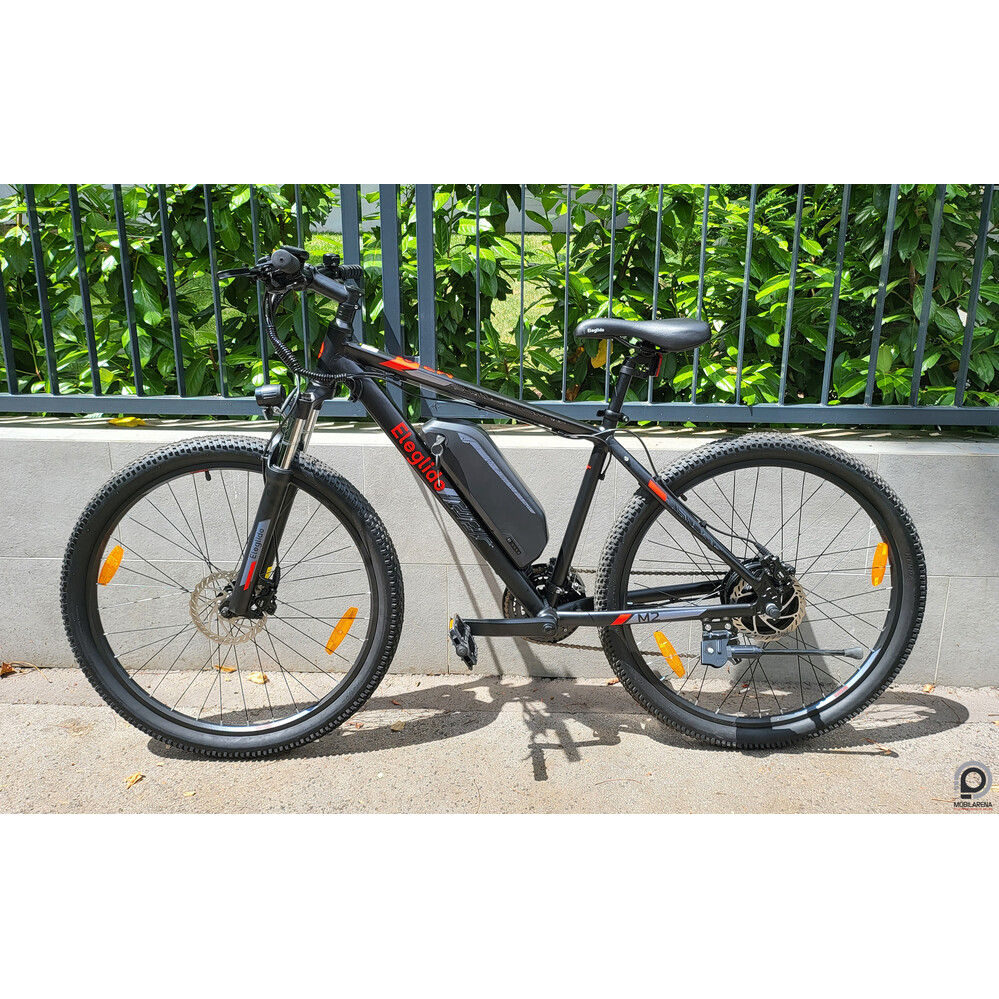

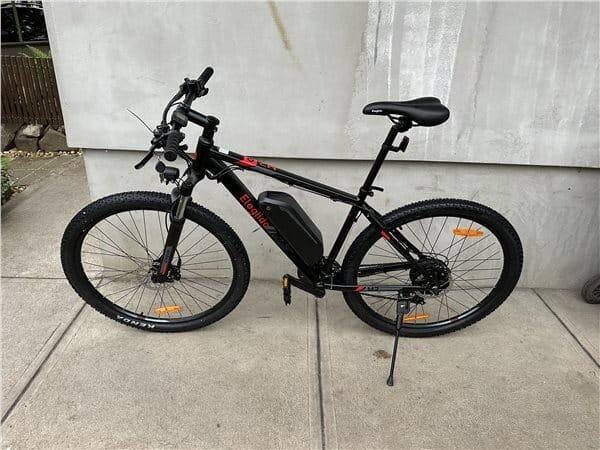

Eleglide Electric Mountain Bike M2

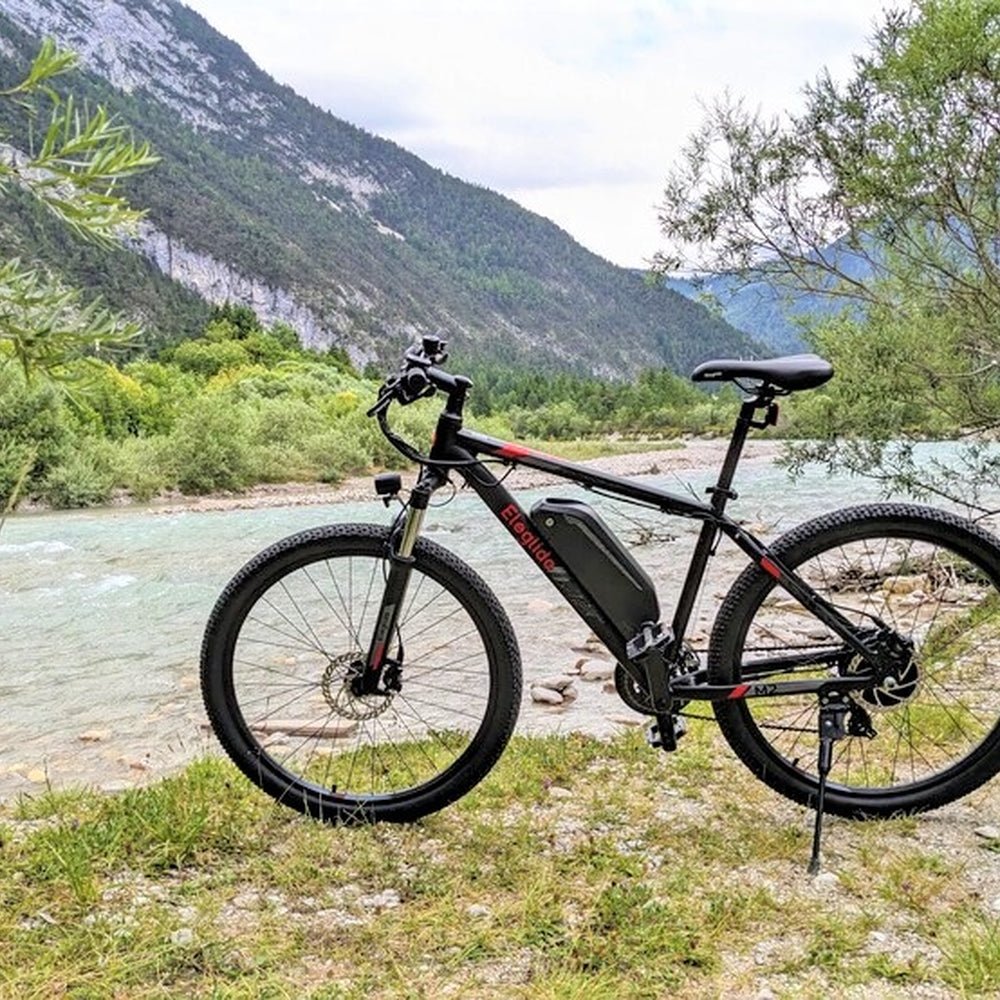

Eleglide M2 – Built for Off-Road Adventure

Take your outdoor explorations to the next level with the Eleglide M2, a high-performance electric mountain bike designed for thrill-seekers and trailblazers. Engineered to handle rugged landscapes and challenging terrain, its powerful motor and advanced features ensure a smooth, exhilarating ride. Whether you're climbing steep hills or navigating rocky trails, the M2 delivers precision, power, and the freedom to explore without limits!

Features

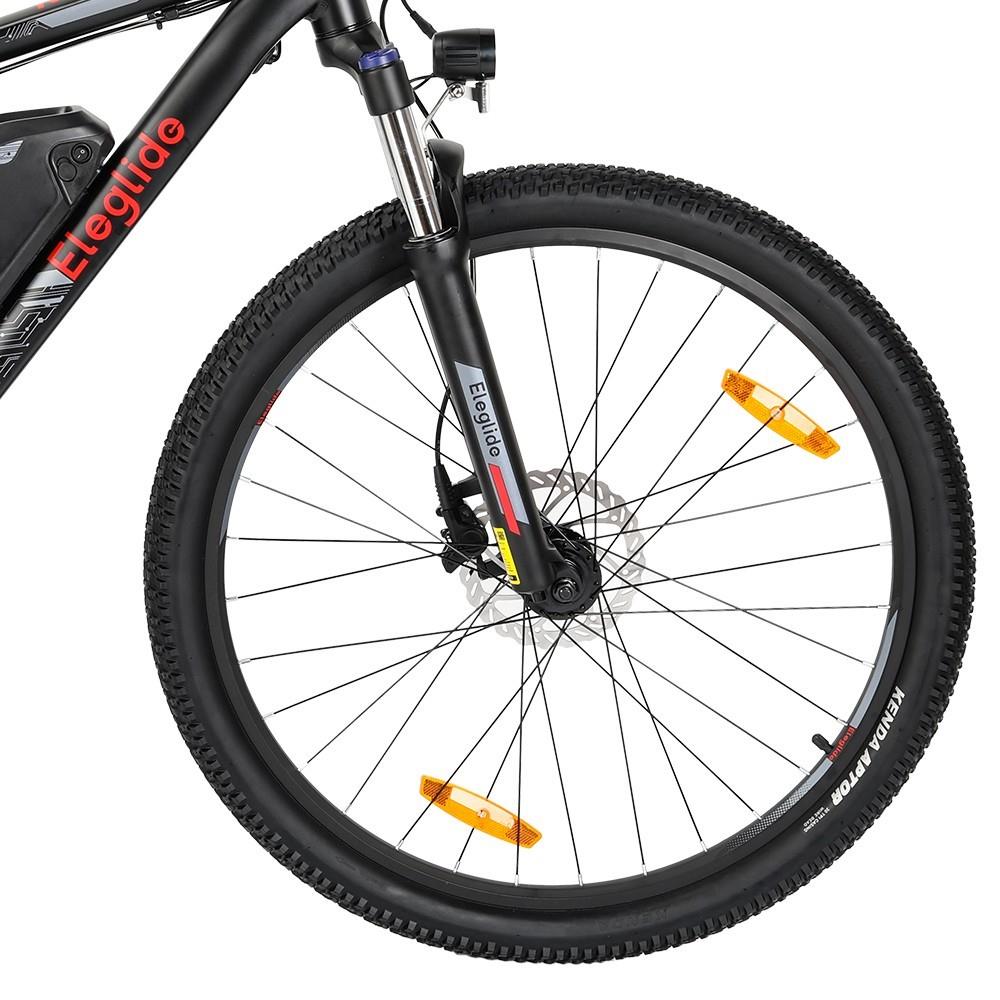

• Kenda Pneumatic Tires: Large tires for a smoother ride, even on rough terrain.

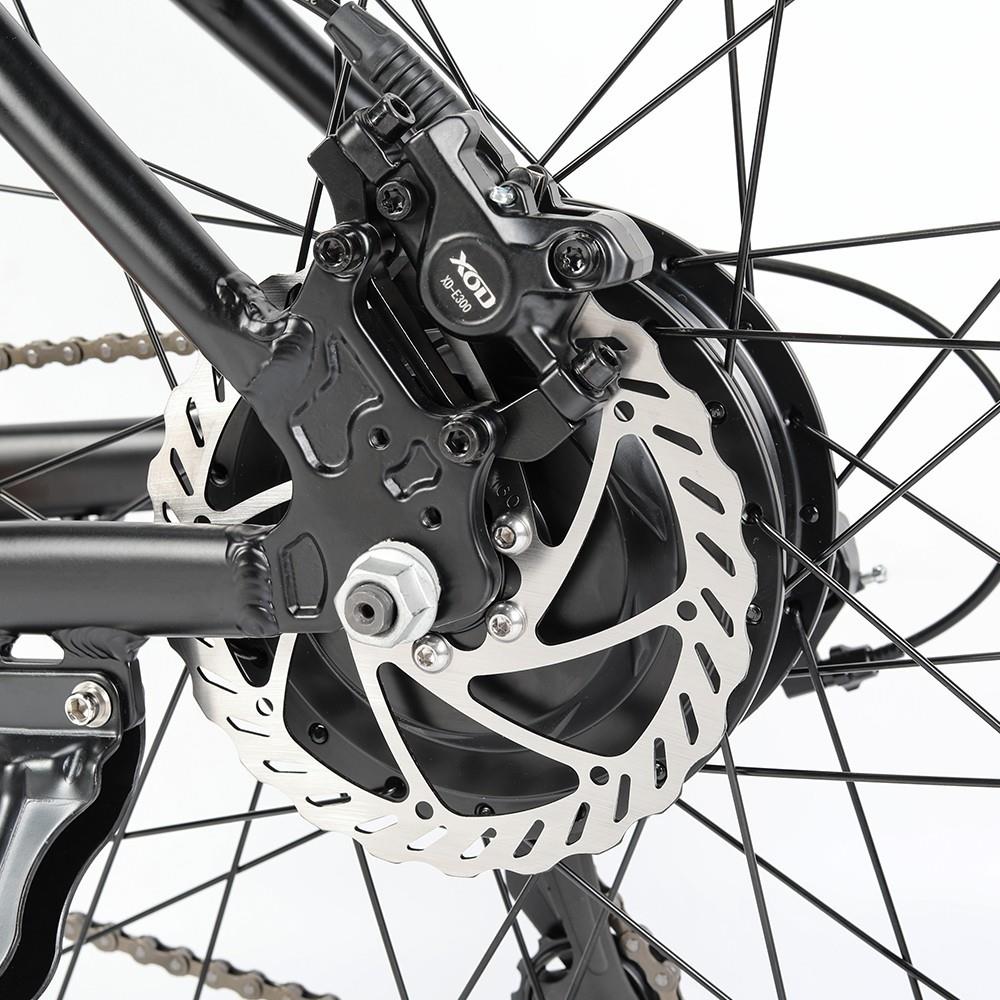

• Hydraulic Disc Brakes: Better control, greater braking power, and longer-lasting performance.

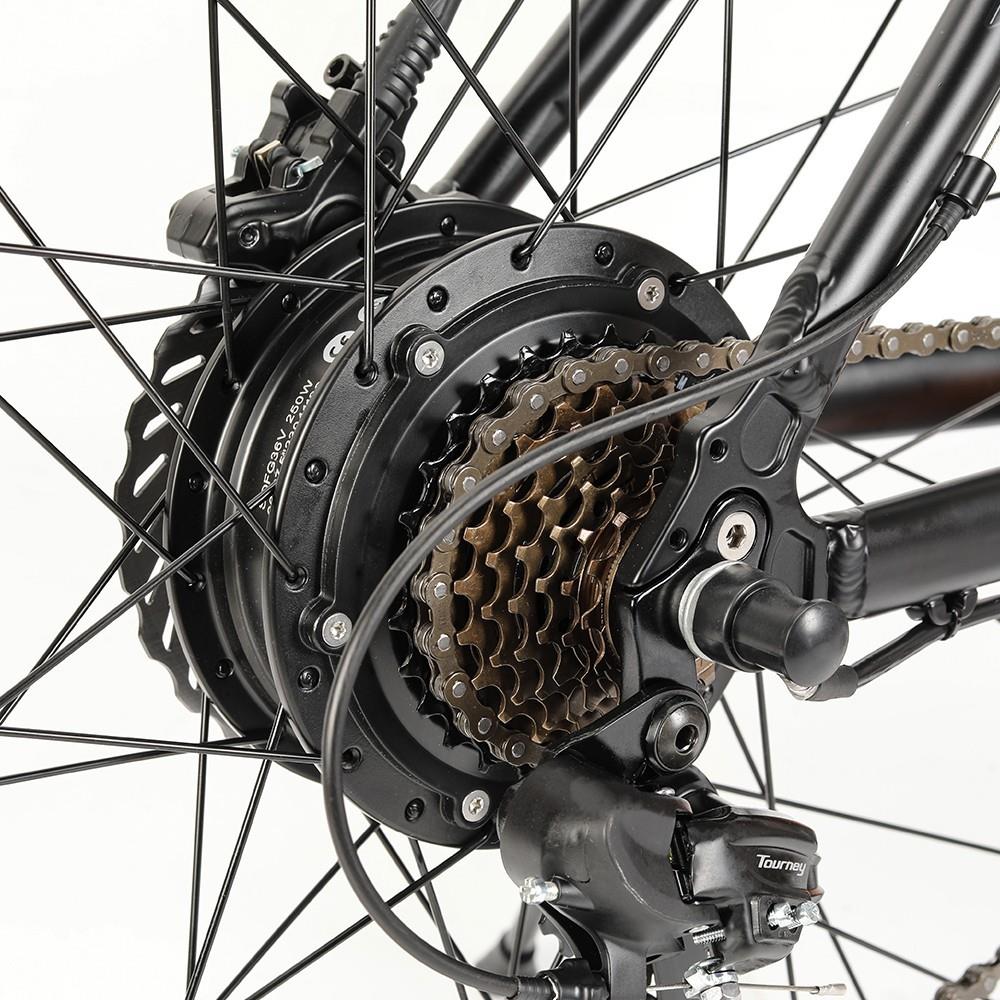

• Powerful Brushless Motor: 55Nm torque, 25km/h max speed for a thrilling ride.
• Premium Suspension with Lockout: Front hydraulic shock for a smooth, comfortable ride.

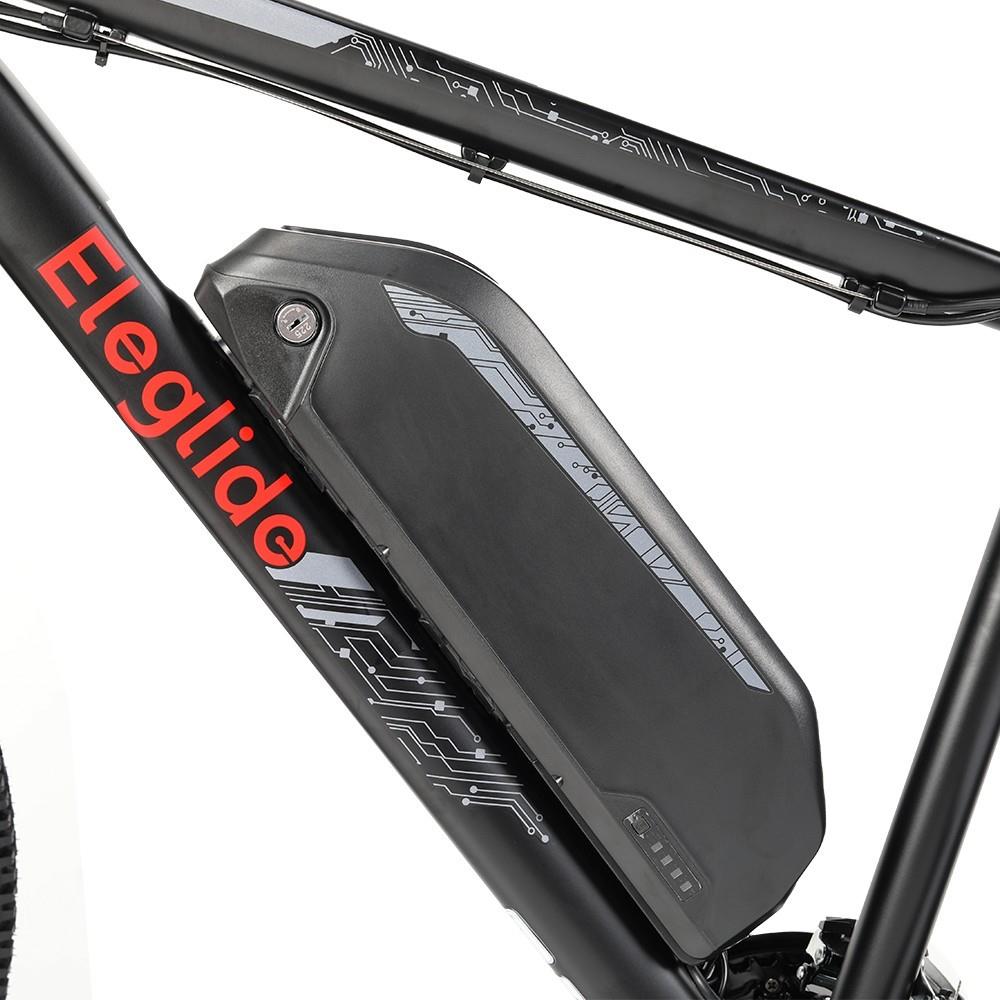

• 540Wh Removable Battery: Supports up to 125km in assist mode for long rides.

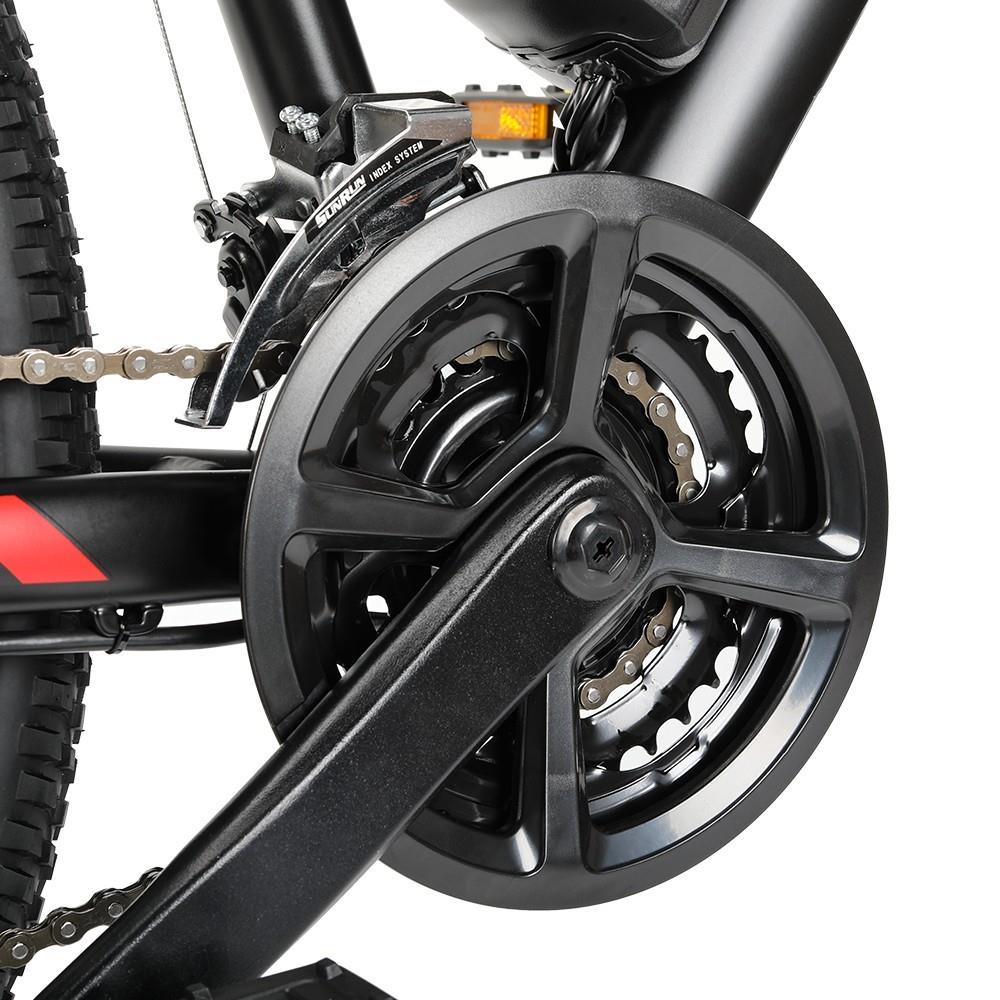

• 24-Speed Shimano Gear: Enjoy variable speeds for a dynamic riding experience.

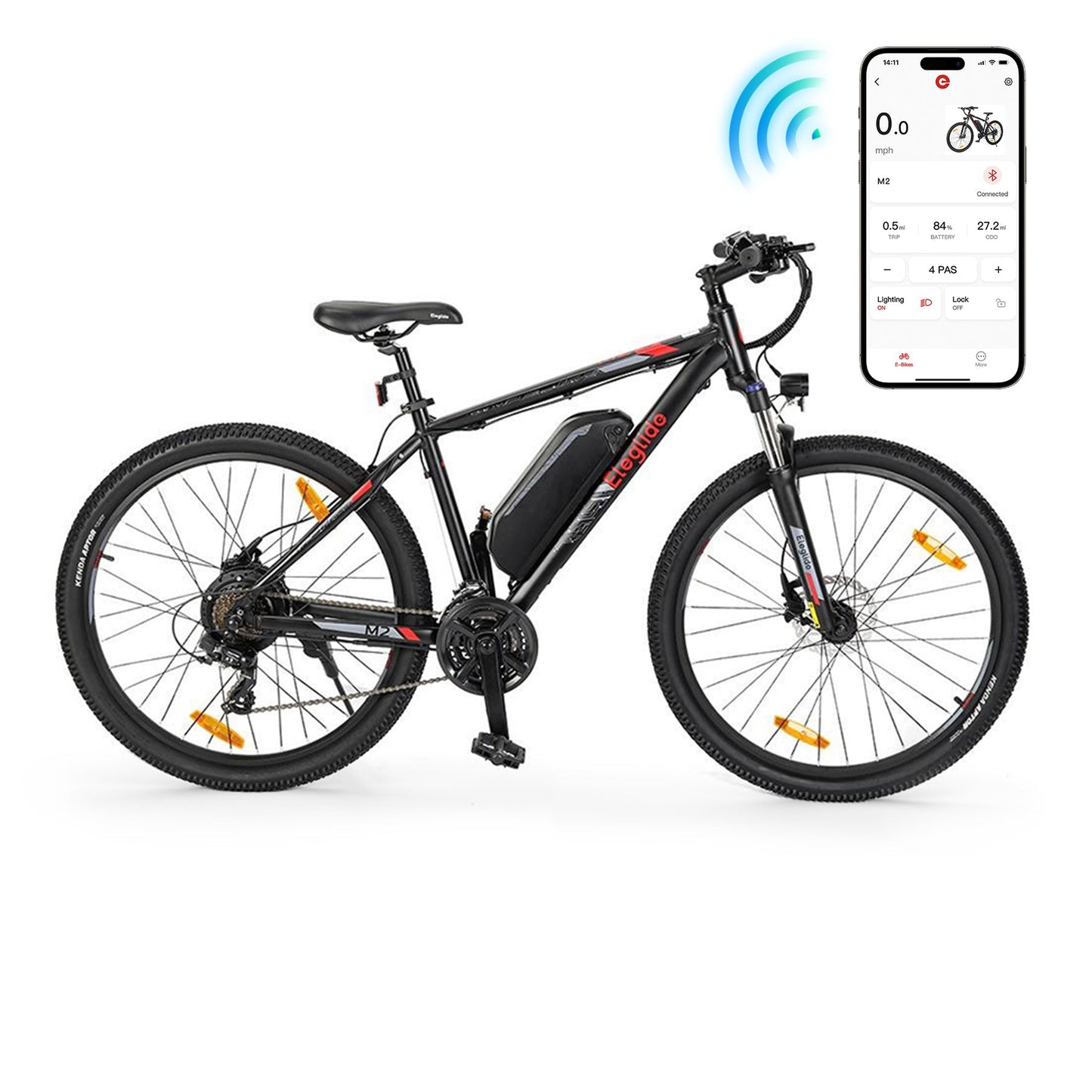

• Smart App: Activate additional features via the Eleglide app (iOS & Android).


Specifications

• Net Weight: M-22kg; L-23kg
• Unfolded Size: M-1800x680x1060mm; L-1865x680x1070mm
• Frame Size: M-27.5"x18"; L-27.5"x18"
• Handlebar Length: M-680mm (26.8", without grip covers), L-700mm (27.6", with grip covers)
• Saddle Height: M-34.3"-41.7"; L-35.4"-42.9"
• Recommended Rider Height: M-160-195cm (5'3"-6'4.8"); L-170-200cm (5'7"-6'7")
• Max Load: 120 kg
• Cut-off Speed: 25 km/h
• Max Range: 125 km (Assist Mode)
• Pedal Assist Levels: 12/16/20/23/25 km/h
• Walk Mode: 6 km/h
• Waterproof Level: IPX4
• Material: Aluminium Alloy (AL6061)
• Braking System: Hydraulic Disc Brakes & Power-off Design
• Motor: 36V, Max Instantaneous Power 570W, Max Output Torque 55N.m
• Battery: 15.6Ah, 36V, Charging Time 10h, 540Wh Power Capacity
• Charger: Input: 90~264V, ≤2.2A; Output: 42V, 2A
• Tires: M-27.5"x2.4"; L-29"x2.4" Pneumatic Rubber, Kenda brand, Tire Pressure 40-65 PSI
• Display: 1.75", LCD, Displays Speed, Battery Level, Trip Distance, etc.
• App: "Eleglide" App for iOS (11.0+) and Android (5.0+), Includes Features like Lock/Unlock, Shifting Assist Levels, and more
• Package Size: M-1480x240x770mm; L-1500x230x790mm
• Gross Weight: M-27.5kg; L-31kg


Dimension

• Total Length (A): 70.9" (1800 mm)
• Handlebar Height (B): 42.5" (1079 mm)
• Wheelbase (C): 43.3" (1100 mm)
• Min Seat Height (D): 34.3" (872 mm)
• Max Seat Height (E): 41.7" (1060 mm)
• Standover Height (F): 31.1" (790 mm)
• Top Tube Length (G): 41.7" (1060 mm)
• Wheel Size (H): 27.5"
• Down Tube (I): 27.5" (700 mm)
• Seat Tube (J): 18" (457 mm)
• Angle (K): 53.4°
• Steering Bar (L): 27.2" (690 mm)
• Reach (M): 16.2" (410 mm)
• Stack (N): 23.7" (600 mm)
• Head Tube Angle (O): 71°

What's in the package?

• 1 x E-Bike
• 1 x User Manual
• 1 x Charger
• 2 x Pedals

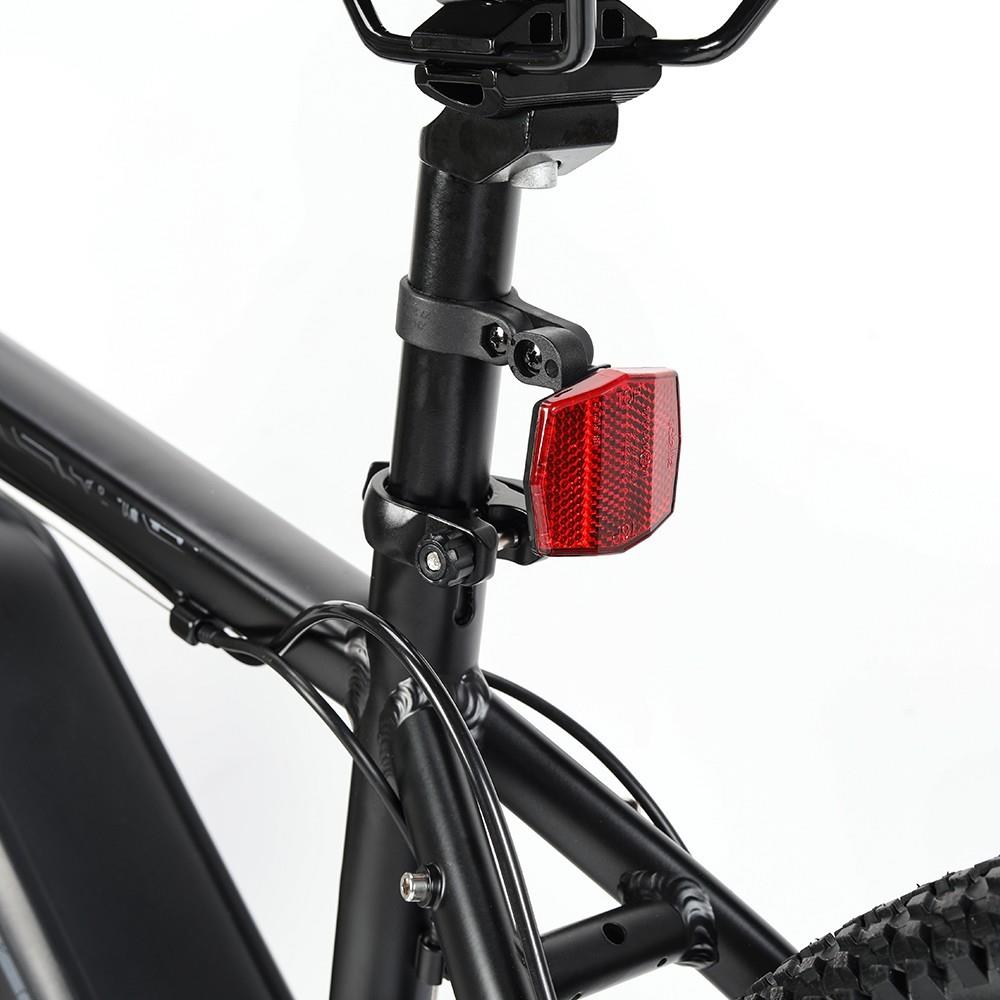

• 1 x Rear Reflector
• 4 x Spoke Reflectors

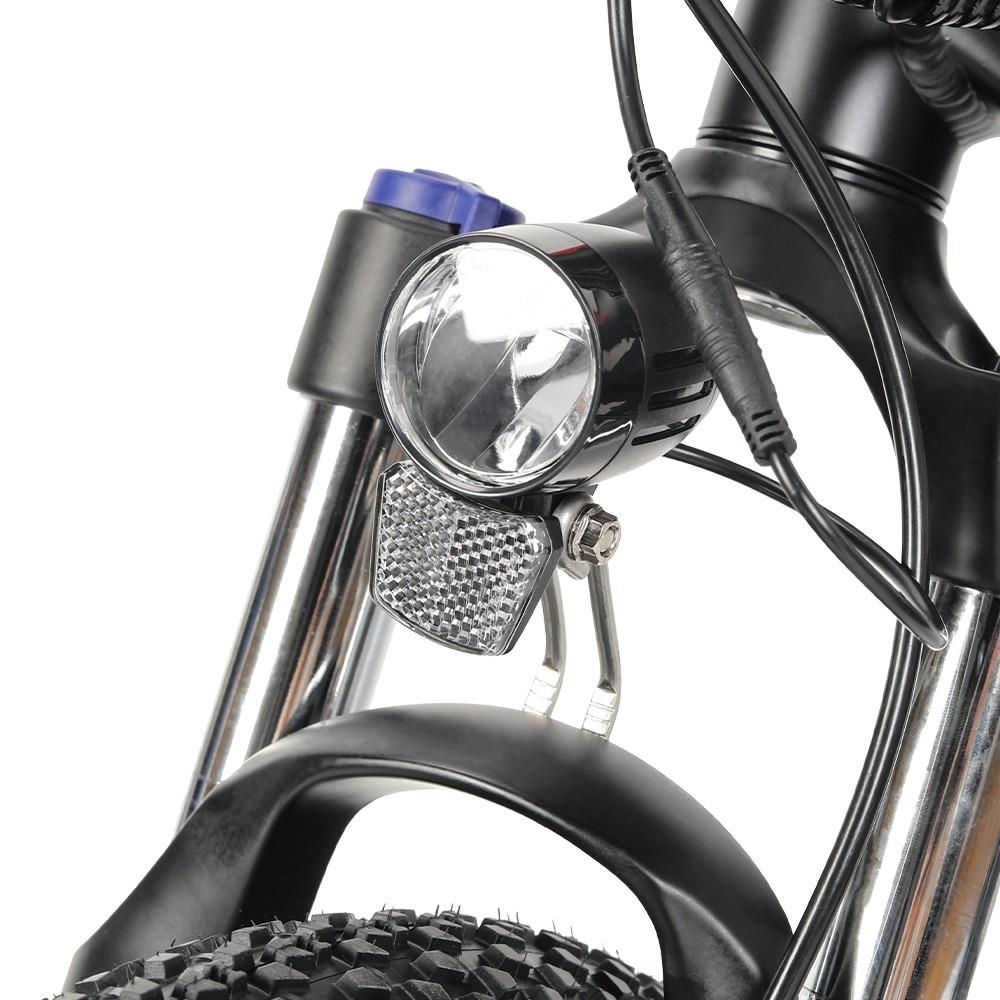

• 1 x Headlight

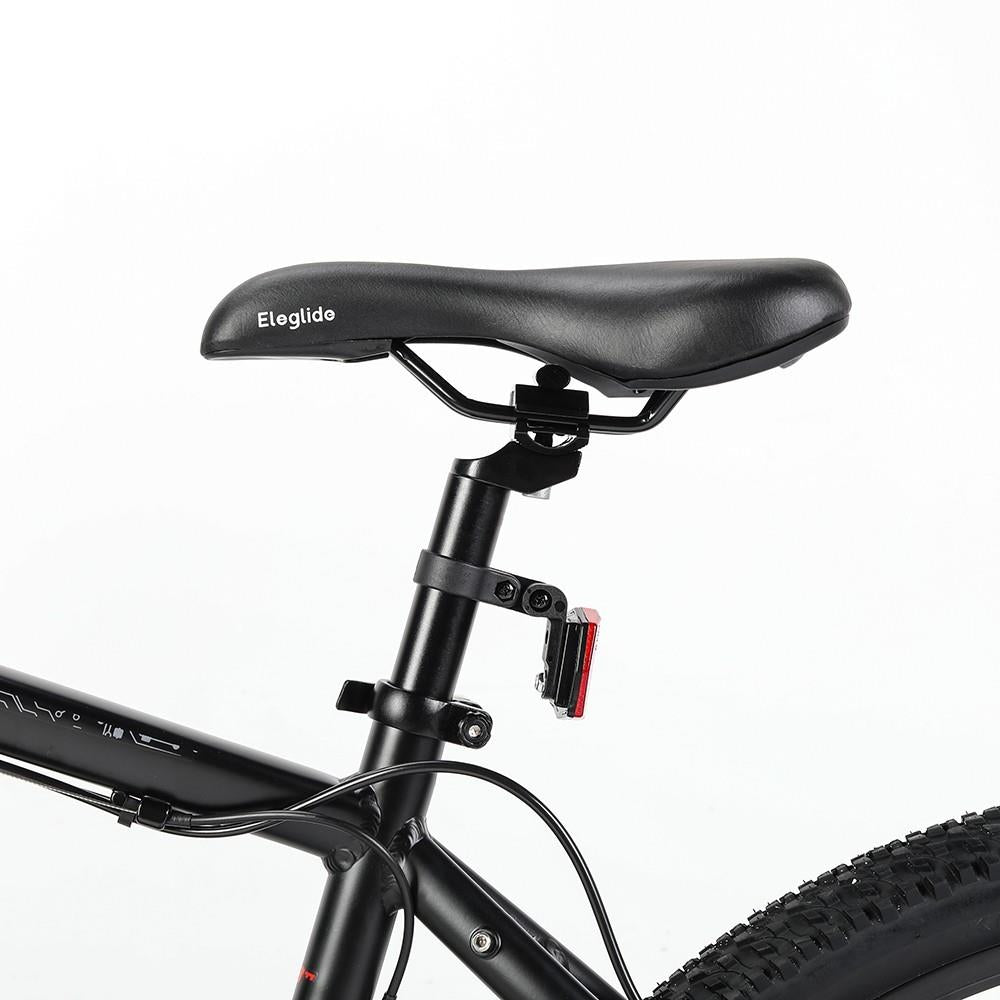

• 1 x Saddle
• 1 x LCD Display
• 2 x Keys
• 1 x Tool Kit
