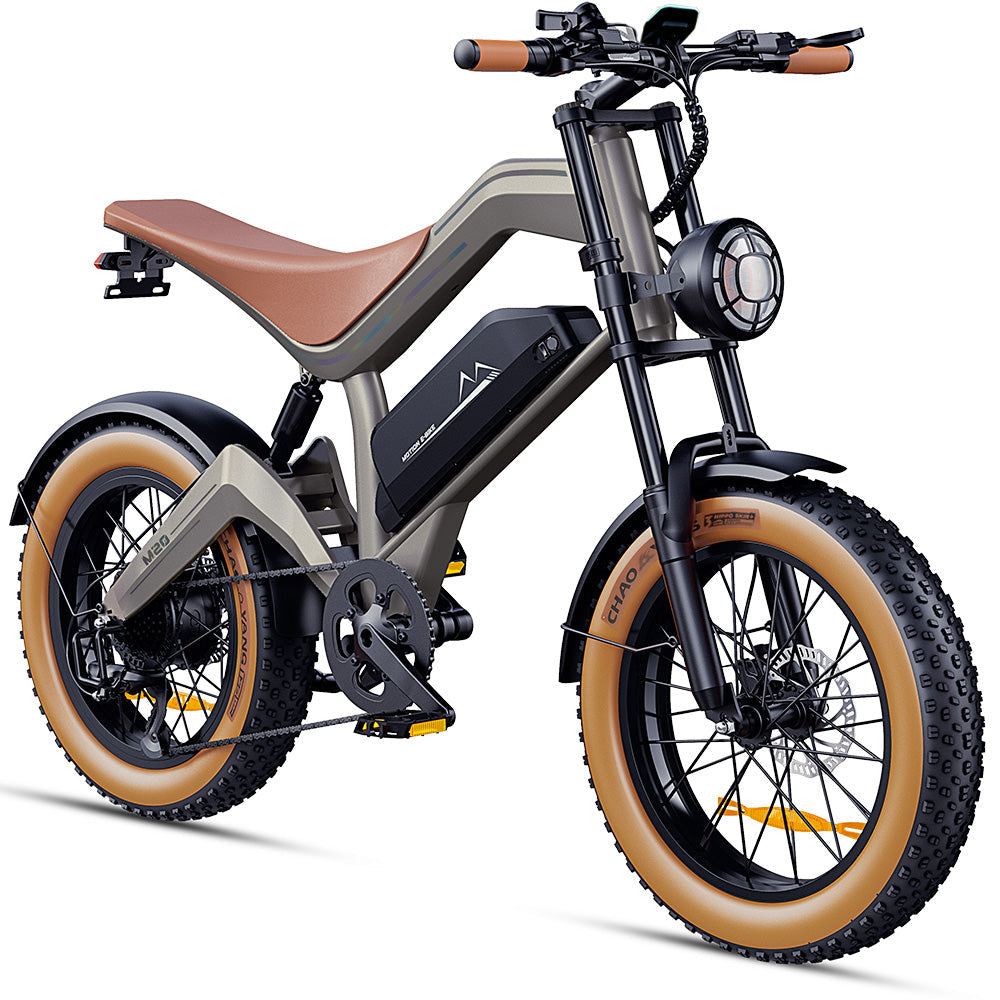

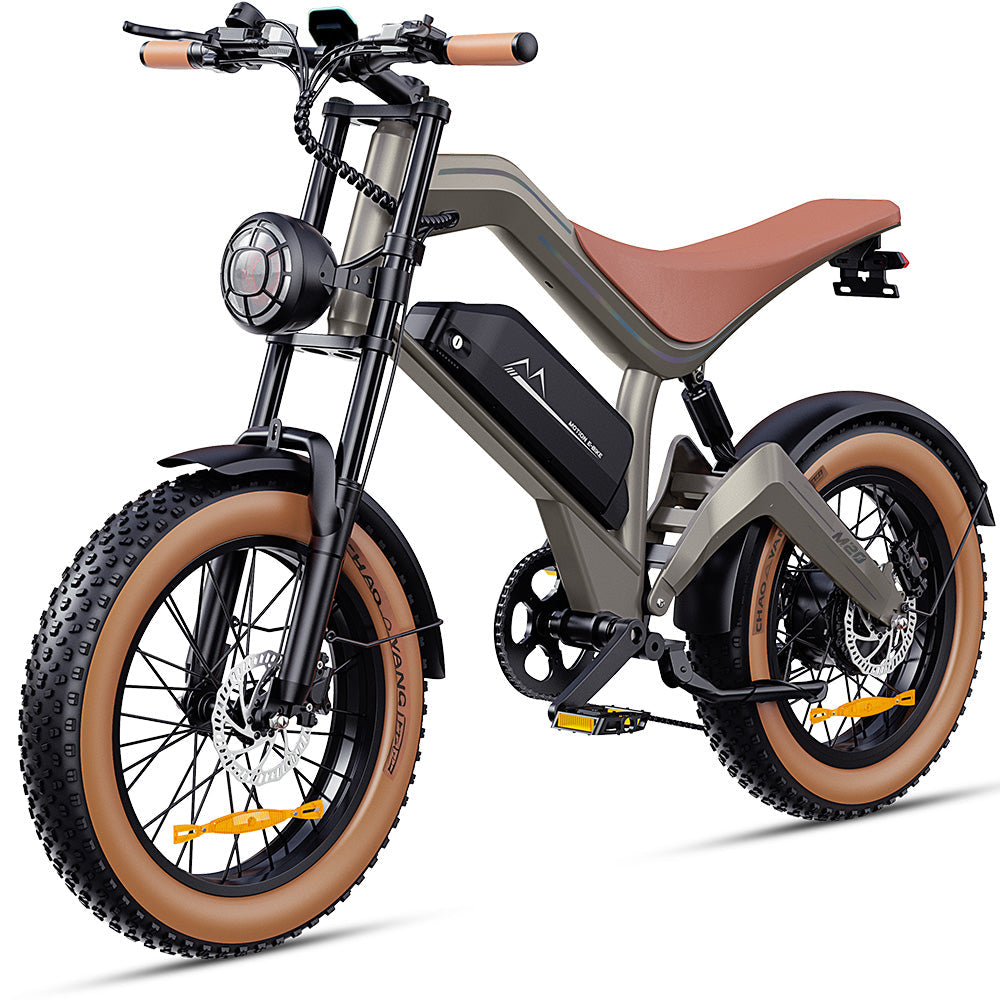

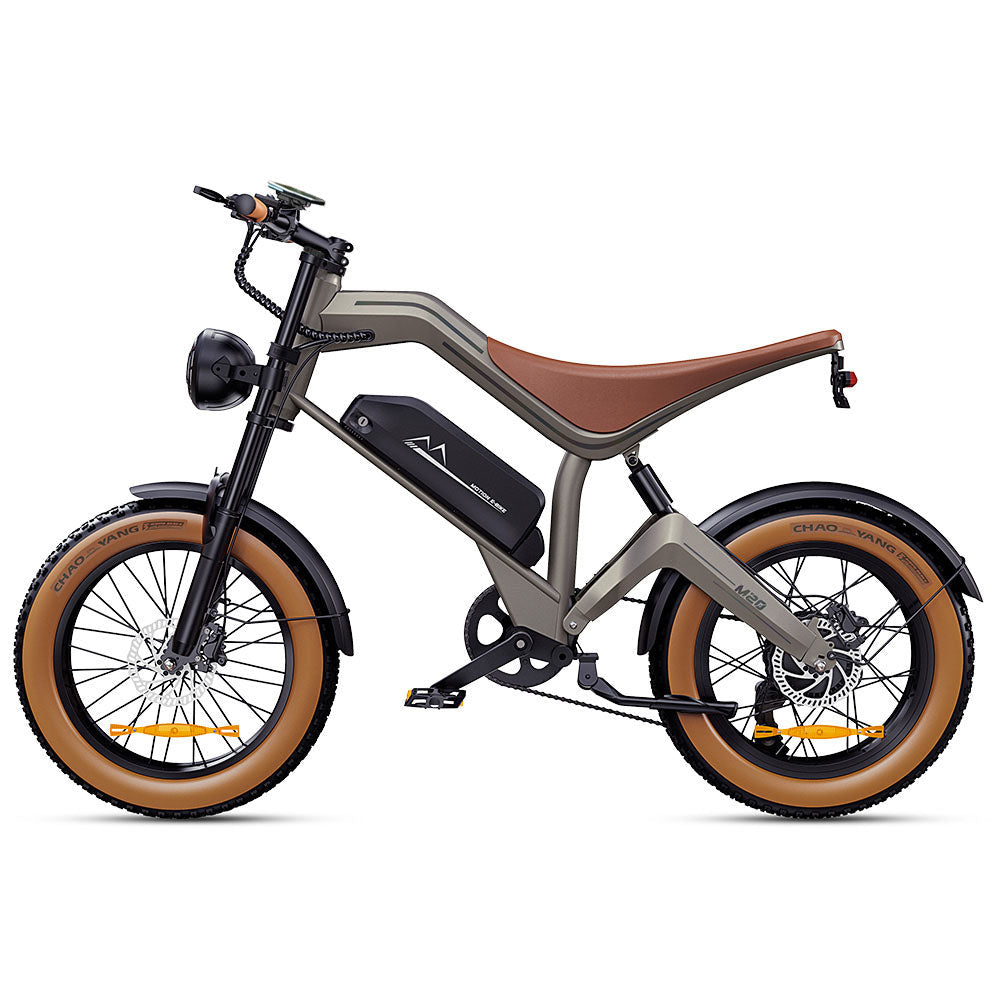

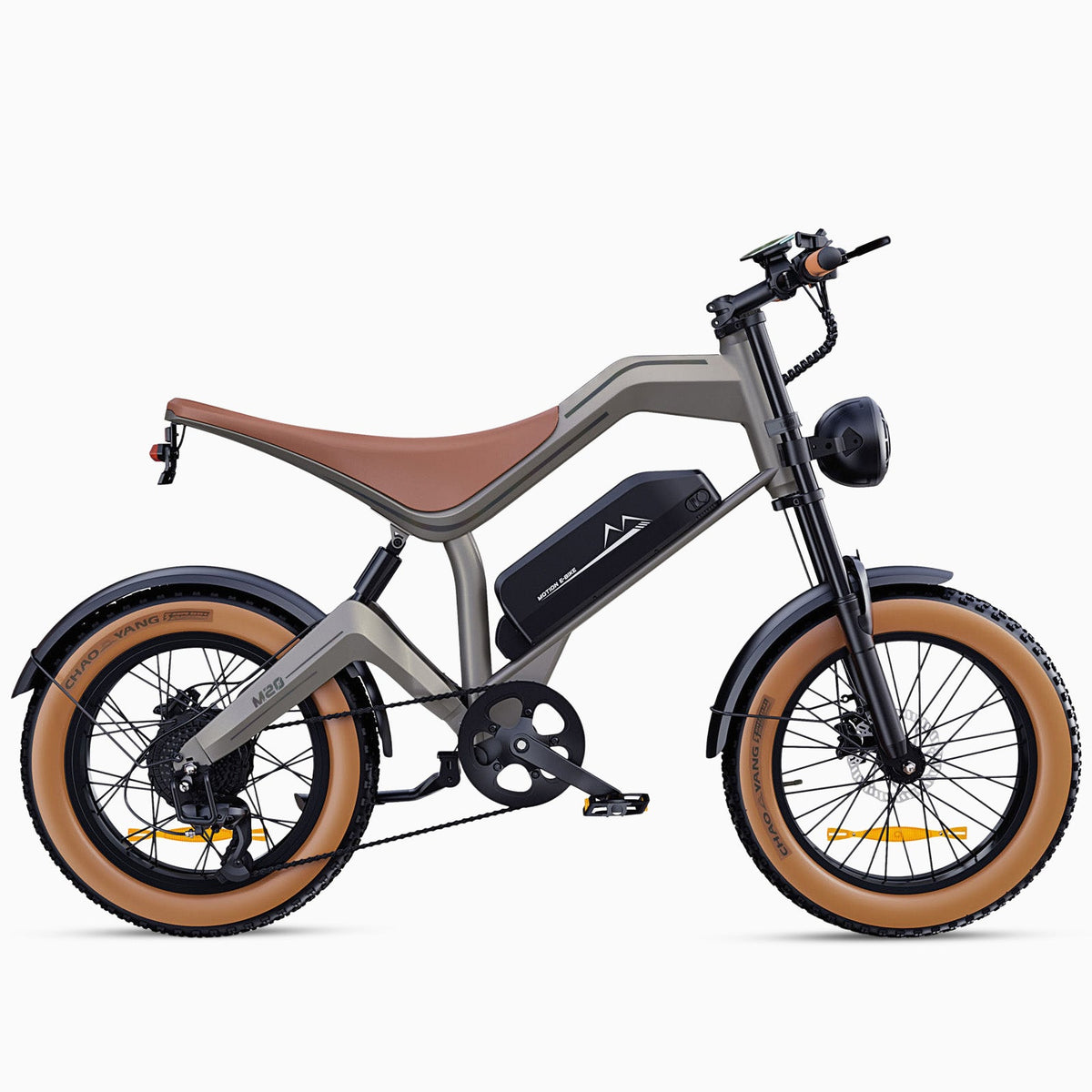

DYU M20 All-Terrain Long-Range Electric Bike
The DYU M20 All-Terrain Electric Bike combines a large-capacity battery, 20-inch fat tyres and full-suspension comfort in a distinctive motorcycle-inspired design built for longer rides and mixed terrain.
Powered by a 250W rated motor and a substantial 48V 18.2Ah removable lithium-ion battery, the M20 delivers smooth electric assistance up to 25km/h (15.5mph) while giving riders the battery capacity needed for commuting, leisure riding and longer weekend adventures.
Its 20" × 4.0" fat tyres provide a stable, confidence-inspiring ride across tarmac, gravel and uneven tracks, while the front suspension fork and twin rear shock absorbers help reduce bumps and vibration. Shimano 7-speed gearing gives you more control over changing terrain, with dual-actuated mechanical disc brakes providing dependable stopping performance.
The M20 is also one of DYU's most substantial long-range e-bikes. Its 873.6Wh battery can be removed for convenient indoor charging, while DYU advertises a maximum range of up to 100 miles under ideal riding conditions.
With its long padded saddle, integrated lighting and rugged fat-tyre stance, the DYU M20 electric bike is an excellent choice for riders looking for a comfortable, powerful-feeling and versatile e-bike for everyday journeys and exploring further afield.
Key Features
- 250W Rated Motor – Smooth electric assistance for commuting, leisure rides and changing terrain, with assistance up to 25km/h / 15.5mph.
- 48V 18.2Ah Removable Battery – Large 873.6Wh lithium-ion battery designed for extended riding and convenient charging on or off the bike.
- Long-Range Performance – DYU advertises a maximum range of up to 100 miles in ideal conditions, helping reduce range anxiety on longer journeys.
- 20" × 4.0" Fat Tyres – Wide tyres provide increased grip, stability and comfort across roads, gravel and rougher surfaces.
- Full Suspension Comfort – Front suspension combined with twin rear shock absorbers helps smooth out bumps and uneven terrain.
- Shimano 7-Speed Gearing – Gives riders practical gear selection for climbing, cruising and varied riding conditions.
- Dual-Actuated Mechanical Disc Brakes – Front and rear disc braking provides controlled stopping performance in changing conditions.
- Long Padded Saddle – The extended 60cm motorcycle-style saddle is designed to provide a comfortable and relaxed riding position.
- Integrated Front & Rear Lighting – Helps improve rider visibility in low-light conditions.

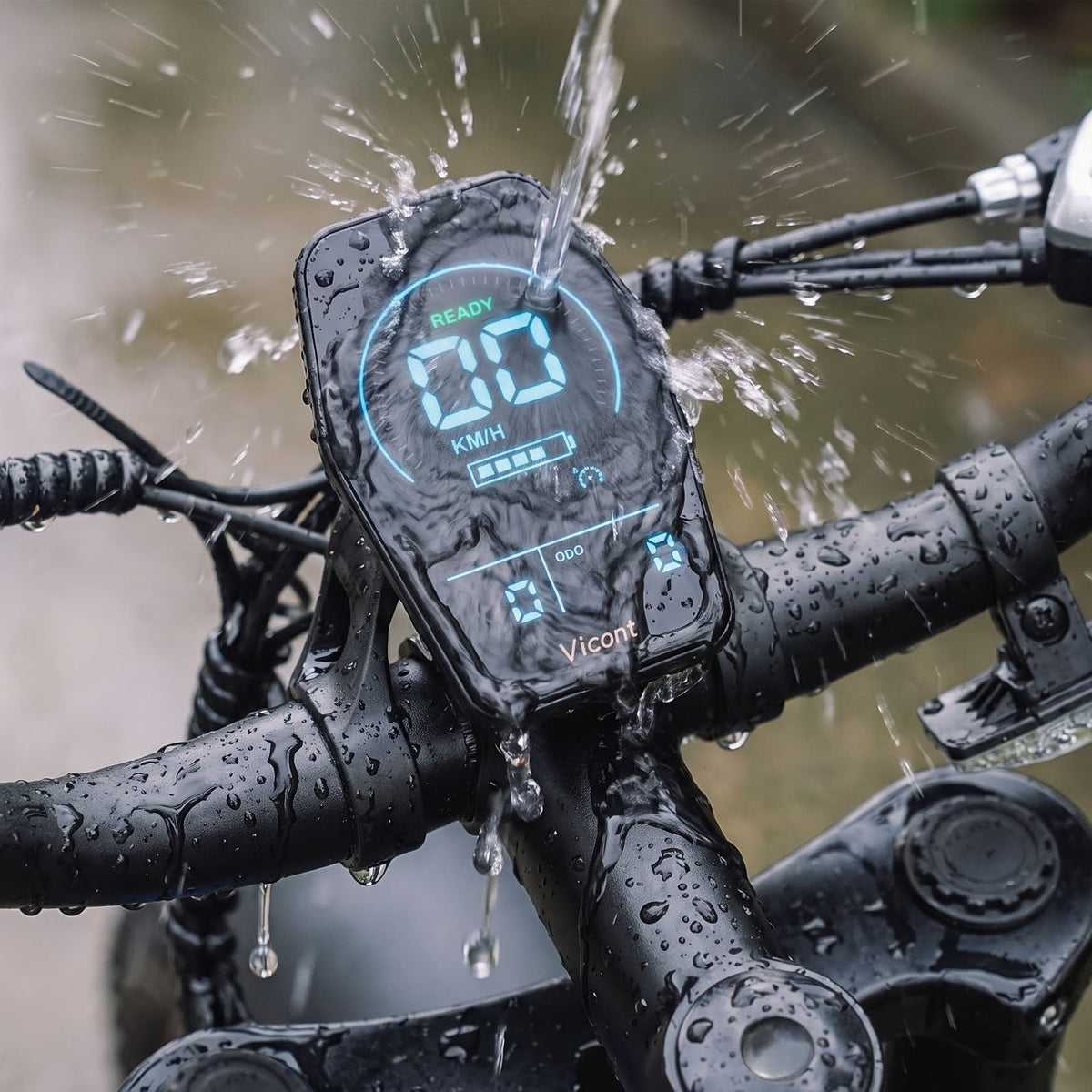

- LED Power Display – Keeps remaining battery level clearly visible while riding.
- Removable Battery with Key Lock – Remove the battery for convenient indoor charging or secure it to the bike when parked.
- 120kg Maximum Load – Strong aluminium frame supports a combined maximum load of up to 120kg.
- IP54 Water Resistance – Provides protection from everyday dust and water splashes.
- Distinctive All-Terrain Design – Rugged styling, fat tyres and suspension make the M20 equally suited to urban journeys and recreational riding.
Specifications
| Specification | Details |
|---|---|
| Motor | 250W rated motor |
| Peak Motor Output | Up to 1000W |
| Battery | 48V 18.2Ah removable lithium-ion |
| Battery Capacity | 873.6Wh |
| Battery Management System | Yes |
| Maximum Assisted Speed | 25km/h / 15.5mph |
| Manufacturer-Stated Maximum Range | Up to 100 miles in ideal conditions |
| Charging Time | Approx. 7–8 hours |
| Transmission | Shimano 7-speed |
| Wheel Size | 20 inch |
| Tyres | 20" × 4.0" fat tyres |
| Brakes | Dual-actuated mechanical disc brakes |
| Front Suspension | Shock-absorbing suspension fork |
| Rear Suspension | Twin rear shock absorbers |
| Frame | Aluminium |
| Display | LED power display |
| Lights | Front and rear |
| Water Resistance | IP54 |
| Maximum Gradient | 15° |
| Maximum Load | 120kg |
| Bike Weight | Approx. 40kg |
| Colour | Brown |
| Foldable | No |

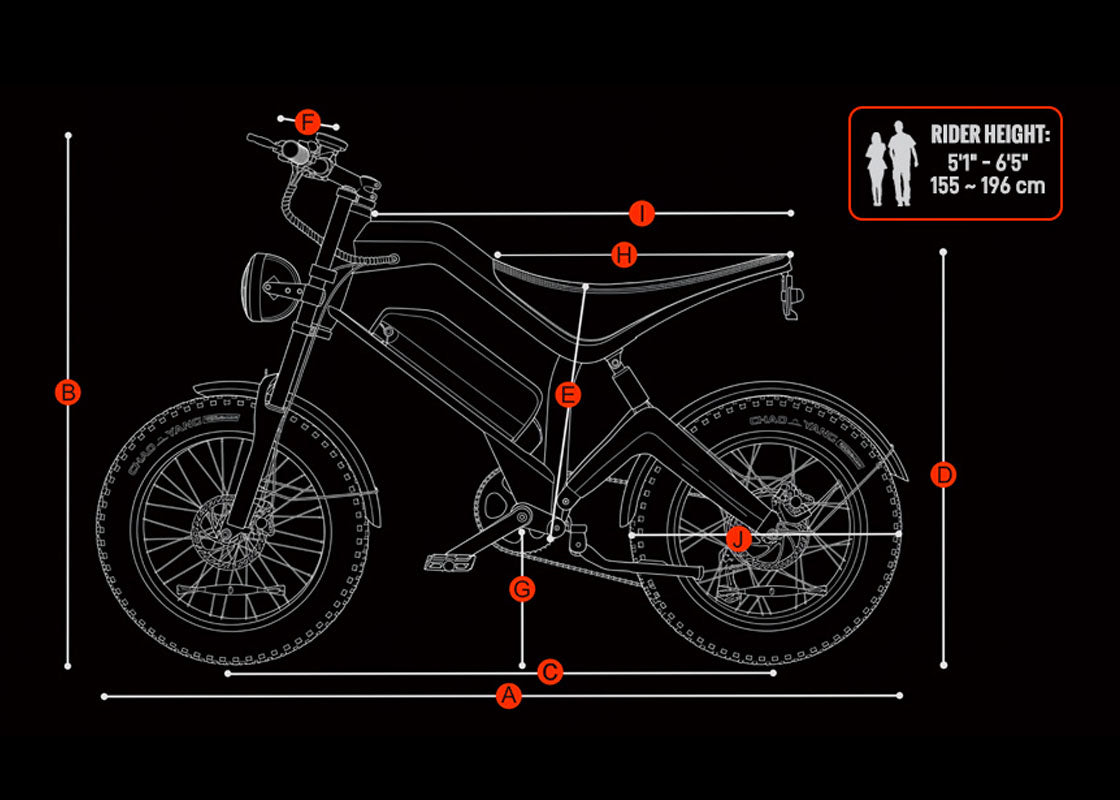

Geometry
| Ref | Measurement | Inches | Centimetres |
|---|---|---|---|
| A | Overall Length | 66.93" | 170cm |
| B | Overall Height | 45.28" | 115cm |
| C | Wheelbase | 43.31" | 110cm |
| D | Seat Height | 30.71" | 78cm |
| E | Pedal Height | 21.65" | 55cm |
| F | Handlebar Height | 27.17" | 69cm |
| G | Bottom Bracket Height | 11.81" | 30cm |
| H | Seat Length | 23.62" | 60cm |
| J | Rear Axle Width | 22.83" | 58cm |
What’s in the Box?
- DYU M20 Electric Bike
- 48V 18.2Ah removable battery
- Battery charger
- 2 × pedals
- 2 × open-ended wrenches
- Allen key
- Owner's manual
- Warranty card
Assembly
The DYU M20 is delivered partially assembled and requires some final assembly and safety checks before riding.
This may include fitting or aligning components such as the handlebars and pedals and checking the brakes, wheels, tyre pressures, electrical connections and all fixing points.
All components should be checked carefully before the first ride. If you are not confident completing the assembly or safety checks yourself, we recommend having the bike inspected by a qualified bicycle or e-bike technician.
Important UK Road Use Information
The UK DYU M20 is listed with a 250W continuous rated motor and assistance limited to 25km/h (15.5mph). DYU also advertises an electric/pure-electric riding mode.
In Great Britain, an e-bike must meet EAPC requirements to be treated in the same way as a conventional bicycle. A bike capable of being propelled without pedalling above 6km/h generally requires appropriate type approval. Riders should ensure the configuration being used complies with applicable UK regulations when riding on public roads and cycle routes.
