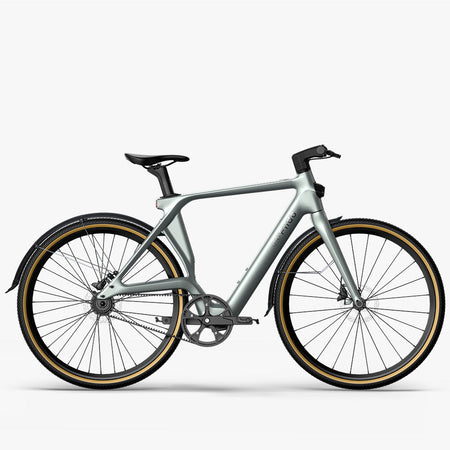

Fiido Air Carbon Fiber E-bike
Fiido Air Carbon Fiber E-bike
Couldn't load pickup availability
Fiido Air – The Future of Lightweight Performance
Winner of the Red Dot Award, the Fiido Air is a revolutionary lightweight e-bike designed for effortless speed and style. Its sleek carbon fiber frame delivers unmatched strength and agility, while the advanced torque sensor ensures an ultra-smooth, responsive ride. With an impressive range and whisper-quiet performance, the Fiido Air is perfect for city commutes and weekend adventures alike. Elevate your ride with the ultimate blend of innovation, comfort, and efficiency!
Features
- Light as Air: Weighs only 13kg, offering an incredibly lightweight ride.
- Eye-catching Red Dot Award-winning Design: The bold rhomboid design exudes a futuristic vibe, making a statement wherever you go.
- Less is More: Features simplified, hidden wiring integrated seamlessly into the bike for a clean, minimalist aesthetic.
- Stealth Carbon E-bike: Designed with pure simplicity, it's hard to tell it's an e-bike—aside from the headlights and taillights.
- Gates Carbon Drive CDN: A maintenance-free belt drive that doesn’t require frame disassembly, offering a smooth and reliable ride.
- Award-Winning Torque Sensor: Paired with a 35NM silent motor, this advanced system ensures you tackle inclines with precision and ease.
- Agile and Responsive Performance: Combining the MIVICE system with Fiido's design, it delivers complete control and responsive handling for an exceptional riding experience.
-
Double Your Range: The optional range-extender battery doubles your ride range, allowing you to go further with ease.
Specifications
- Model Name: AIR
- Model Code: C31
- Net Weight: 13.75 kg
- Payload: 120 kg
FRAMESET
- Frame: 700C carbon fiber frame
- Fork: Carbon fiber through axle fork (15mm axle diameter, 100mm opening width)
- Headset: Aluminum alloy bearing headset
E-SYSTEM
- Drive Unit: Mivice M070 250W

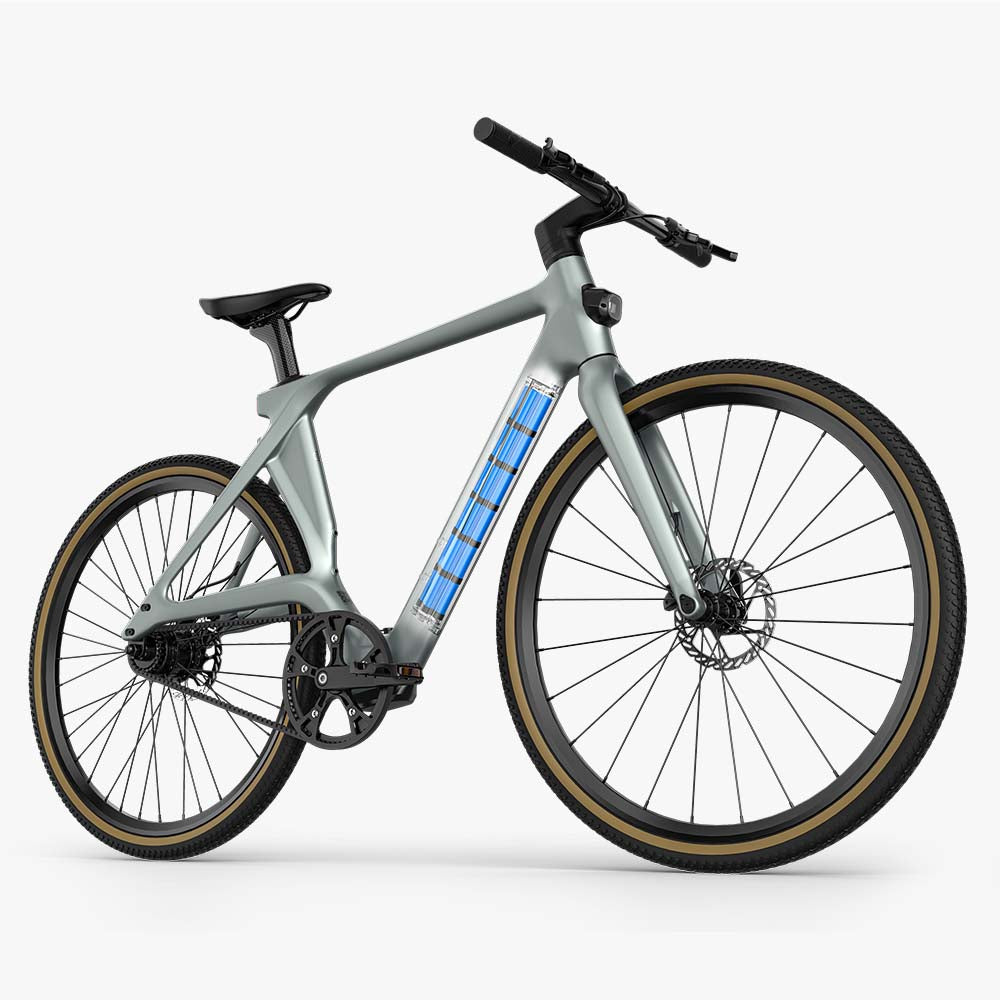

- Battery: DMEGC 208.8Wh
- Charger: 36V2A
DRIVETRAIN
- Chain: GATES CDN Belt
- Crank: GATES CDX 60T
- Rear Cogs: GATES CDC 22T
- Sensor: Torque Sensor Mivice S200
BRAKES
- Brakes: Hydraulic Disc Brake
WHEELS
- Front Hub: Aluminum alloy double-bearing barrel axle hub (15mm barrel axle diameter)
- Rims: Aluminum alloy double-layer rim
- Spokes: Stainless steel spokes with brass nipples
- Tires: KENDA 27.6*1.57
COMPONENTS
- Handlebar: Carbon fiber (640mm length, 31.8mm max diameter, 22.2mm min diameter)
- Stem: Carbon fiber stem
- Grips: TPR non-slip handle grip (130mm length)
- Saddle: VELO vacuum full-fit saddle
- Seatpost: Carbon fiber aero seatpost (M-355mm, L-385mm, XL-415mm)

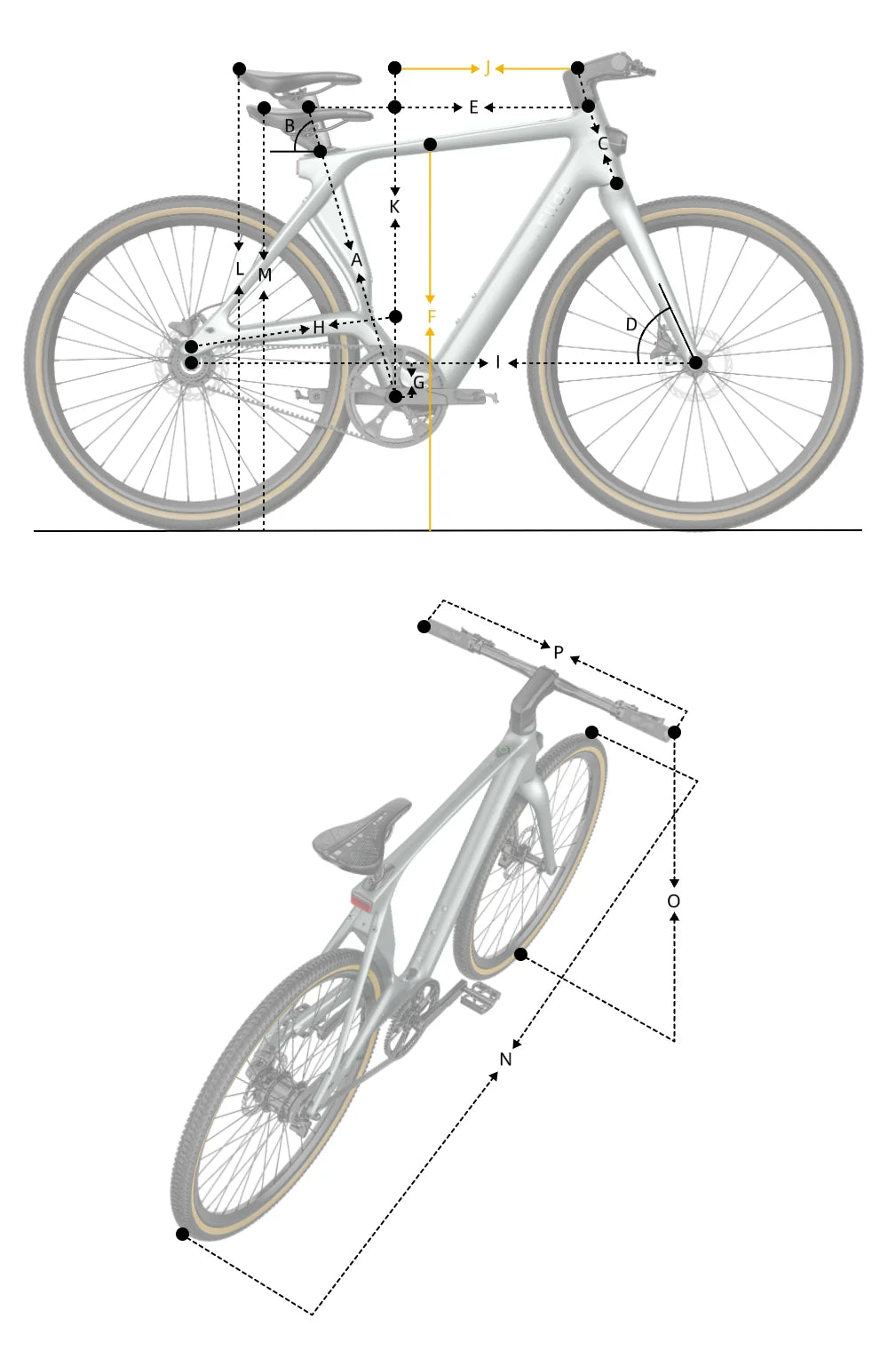

Geometry
-
Rider Height:
- M: 5'3" (160cm) - 5'9" (175cm)
- L: 5'7" (170cm) - 6'3" (190cm)
- XL: 6'1" (185cm) - 6'9" (205cm)
-
Wheel Size: KENDA 700*40C
-
A-Seat Tube:
- M: 510mm
- L: 540mm
- XL: 580mm
-
B-Seat Tube Angle: 73°
-
C-Head Tube:
- M: 150mm
- L: 170mm
- XL: 190mm
-
D-Head Angle:
- M: 71°
- L: 72°
- XL: 72.5°
-
E-Top Tube Length:
- M: 576mm
- L: 592mm
- XL: 600mm
-
F-Standover Height:
- M: 818mm
- L: 845mm
- XL: 876mm
-
G-BB Drop: 70mm for all sizes
-
H-Rear Center: 435mm for all sizes
-
I-Wheelbase:
- M: 1057mm
- L: 1063mm
- XL: 1063mm
-
J-Reach:
- M: 394mm
- L: 404mm
- XL: 405mm
-
K-Stack:
- M: 593mm
- L: 616mm
- XL: 638mm
-
L-Maximum Seat Height:
- M: 950mm
- L: 1010mm
- XL: 1080mm
-
M-Minimum Seat Height:
- M: 890mm
- L: 920mm
- XL: 950mm
-
N-Total Length:
- M: 1755mm
- L: 1780mm
- XL: 1780mm
-
O-Handlebar Height:
- M: 987mm
- L: 1010mm
- XL: 1032mm
-
P-Handlebar Length: 655mm for all sizes
What's in the package?
- Electric Bike x1
- User Manual x1
- Charger x1
- Pedals x1
- Y-type Allen Wrench x1
- Hex Wrench x1
-
Open Spanner x1
